ASV

RC-85

Compact Track Loader

Operating Weight
9,710 lb
Max Speed - high range
6.1 mph
Displacement
268 in³
Gross Power
86.0 hp
All compact track loaders

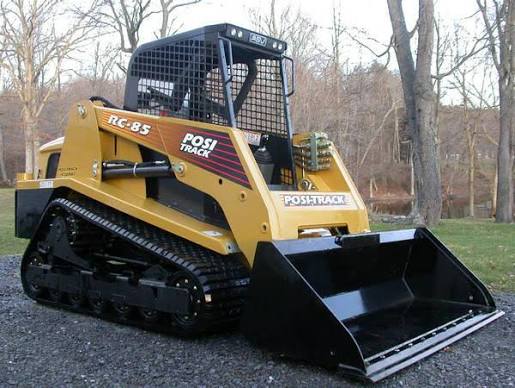

ASV RC-85 Compact Track Loader
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight9,710 lb
Max Speed - high range6.1 mph
Fuel Capacity26.0 gal
Hydraulic System Fluid Capacity20.1 gal
Cooling System Fluid Capacity3.2 gal
Operating Voltage12 V
Alternator Supplied Amperage65 A
Engine Oil Capacity2.2 gal

Engine

Engine specifications
Engine Model1104C-44
Displacement268 in³
Power Measured @2,300 rpm
Gross Power86.0 hp
Aspirationnaturally aspirated
Peak Torque222 lb-ft

Hydraulic System

Hydraulic System specifications
Pump Flow38.0 gal/min
Relief Valve Pressure3,300 psi

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab80 in
Width Over Tracks70 in
Length with Bucket149 in
Length - without Bucket118 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Length of Track on Ground73 in
Width of Track18 in
Ground Contact Area2,604 in³
Track Gauge52 in

Loader

Loader specifications
Tipping Angle6,800 °
Operating Load3,400 lb
