Bell

315SG

Backhoe Loader

Bucket Capacity
1.40 yd³
Max Speed
20.6 mph
Gross Power
84.5 hp
All backhoe loaders

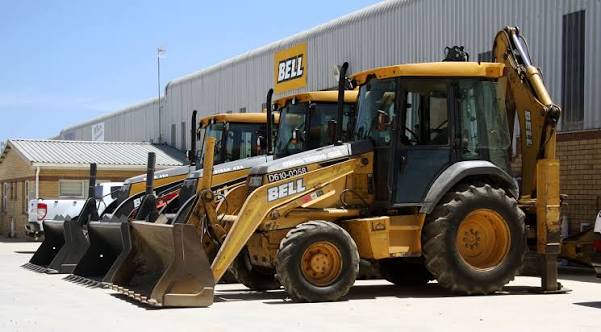

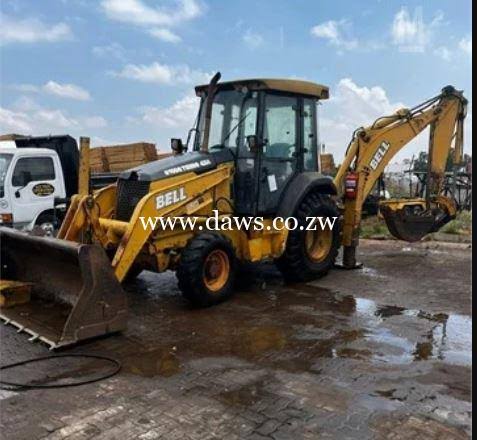

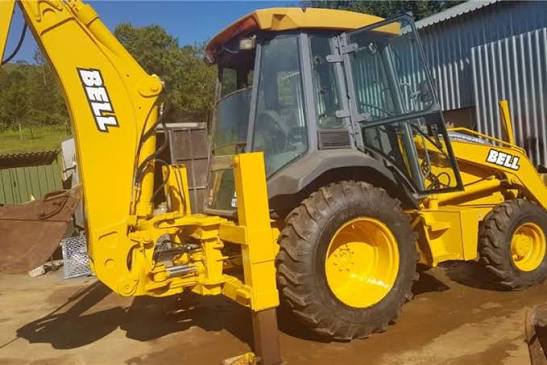

Bell 315SG Backhoe Loader
1 / 5
Image 1 of 5
Image: cabglass.co.za

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity36.0 gal

Engine

Engine specifications
Engine Model4045T
Gross Power84.5 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity36.0 gal/min
Relief Valve Pressure3,626 psi
Pump Typegear type tandem with unloader

Dimensions

Dimensions specifications
Transport Width145 in
Transport Length207 in

Transmission

Transmission specifications
Max Speed20.6 mph
Max Speed - Reverse20.6 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission Typepowershift

Backhoe

Backhoe specifications
Dig Depth168 in
Reach From Swivel220 in
Bucket Dig Force11,982 lb
Load Height141 in

Loader

Loader specifications
Bucket Capacity1.40 yd³
Lift Capacity11,389 lb
Clearance at Max Dump Height104 in
Bucket Width92 in
