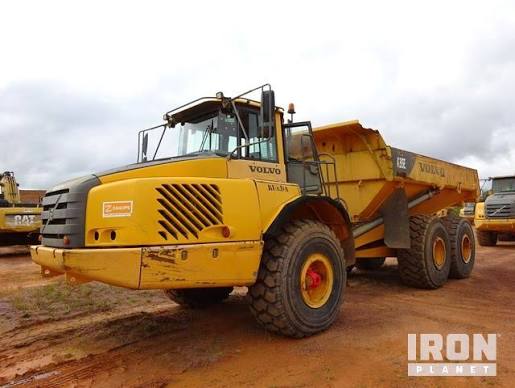

Volvo
A35E
Off-Highway Truck
44 specifications
1 / 5
Image 1 of 5
Specifications
19 data points
Operating Specifications
| Fuel Capacity | 52.9 gal |
|---|---|
| Tire Size | 20.5R25 |
Engine
| Engine Model | OM906LA |
|---|---|
| Gross Power | 170.0 hp |
| Max Torque | 597 lb-ft |
Weights
| Total Empty | 33,151 lb |
|---|---|
| Total Loaded | 39,683 lb |
Dimensions
| Overall Length | 354 in |
|---|---|
| Overall Width | 104 in |
| Overall Height | 134 in |
Transmission
| Max Speed | 40.4 mph |
|---|---|
| Transmission Type | ZH HP592 |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
Dump
| Dump Angle | 70 ° |
|---|---|
| Raise Time | 12.0 s |
| Lower Time | 6.0 s |
| Capacity - Heaped | 14.40 yd³ |
| Capacity - Struck | 11.20 yd³ |
