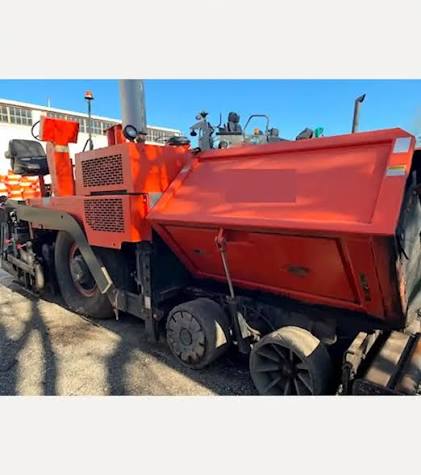

Ingersoll Rand
PF2181
Asphalt Paver
21 specifications
Bitelli
BB781
- Operating Weight w/ Screed
- 46,077 lb
- Paving Width - max
- 512 in
- Gross Power
- 199.9 hp
- Length w/ Screed
- 257 in
1 / 5
Image 1 of 5
Specifications
14 data points
Operating Specifications
| Operating Weight w/ Screed | 46,077 lb |
|---|---|
| Operating Weight w/o Screed | 38,052 lb |
| Fuel Capacity | 78.0 gal |
| Hydraulic System Fluid Capacity | 52.9 gal |
Engine
| Engine Model | 3126B ATAAC |
|---|---|
| Gross Power | 199.9 hp |
Dimensions
| Transport Width | 100 in |
|---|---|
| Transport Height | 148 in |
| Length w/ Screed | 257 in |
| Width w/ Hopper Open | 141 in |
Hopper/Paver
| Paving Width - max | 512 in |
|---|---|
| Paving Speed - max | 1.0 mph |
| Hopper Capacity | 9 lb |
| Travel Speed - max | 3.8 mph |
