Bobcat
JCB
8010 CTS
Mini Excavator
34 specifications
1 / 5

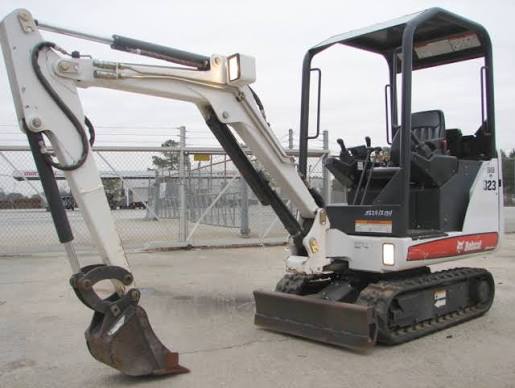

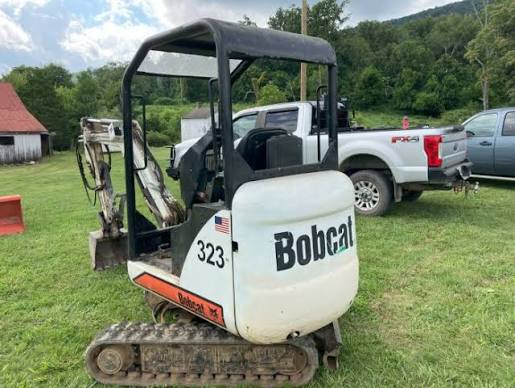

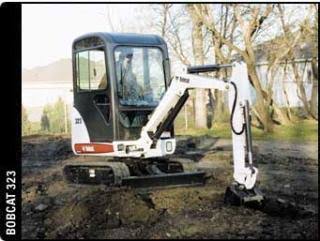

Image 1 of 5
Specifications
25 data points
Operating Specifications
| Operating Weight | 3,655 lb |
|---|---|
| Hydraulic Pump Flow Capacity | 8.0 gal/min |
Engine
| Engine Model | Cat C7.1 ACERT |
|---|---|
| Displacement | 428 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 13.3 hp |
| Number of Cylinders | 3 |
| Bore | 4 in |
| Stroke | 5 in |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Length of Track on Ground | 44 in |
| Tail Swing Radius | 43 in |
| Width to Outside of Tracks | 40 in |
Undercarriage
| Max Travel Speed | 2.4 mph |
|---|---|
| Shoe Size | 9 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 91 in |
|---|---|
| Max Reach Along Ground | 155 in |
| Max Vertical Wall Digging Depth | 70 in |
| Max Loading Height | 139 in |
| Shipping Length of Unit | 154 in |
| Shipping Height of Unit | 88 in |
Service Refill Capacities
| Engine Oil | 6.6 gal |
|---|---|
| Hydraulic Tank | 30.4 gal |
| Cooling System | 6.6 gal |
| Fuel Tank Capacity | 86.6 gal |
