Bobcat

337

Mini Excavator

Operating Weight
11,085 lb
Max Digging Depth
142 in
Net Power
48.0 hp
All mini excavators

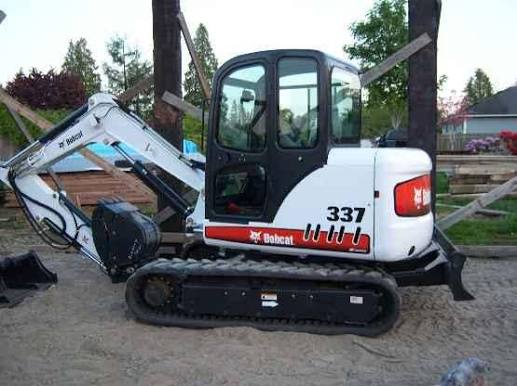

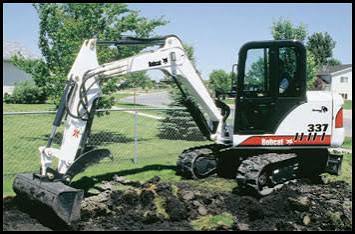

Bobcat 337 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

30 data points

Operating Specifications

Operating Specifications specifications
Operating Weight11,085 lb
Fuel Capacity22.1 gal
Hydraulic Pump Flow Capacity46.9 gal/min

Engine

Engine specifications
Engine ModelV2003-M-DI-TE2B
Displacement122 in³
Power Measured @2,500 rpm
Net Power48.0 hp

Dimensions

Dimensions specifications
Height - Top of Cab100 in
Tail Swing Radius64 in
Width to Outside of Tracks77 in
Removal Counterweight Clearance26 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge60 in
Max Travel Speed3.3 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth142 in
Max Reach Along Ground226 in
Max Vertical Wall Digging Depth107 in
Max Loading Height152 in
Shipping Length of Unit223 in
Max Cutting Height220 in
Shipping Height of Unit100 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Long Arm Option

Long Arm Option specifications
Operating Weight (Long Arm)11,660 lb
Max Digging Depth (Long Arm)157 in
Hydraulic Pump Flow Capacity (Long Arm)20.0 gal/min
Max Reach Along Ground (Long Arm)241 in
Max Loading Height (Long Arm)163 in
Max Travel Speed (Long Arm)3.2 mph
Shipping Length of Unit (Long Arm)222 in

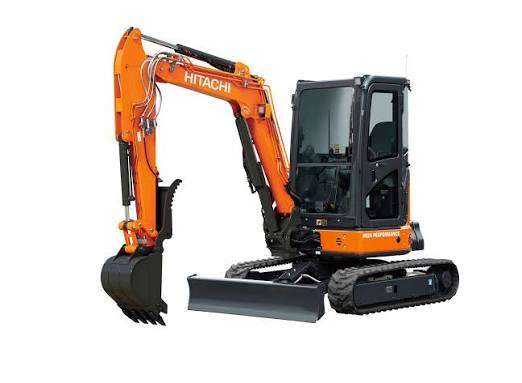

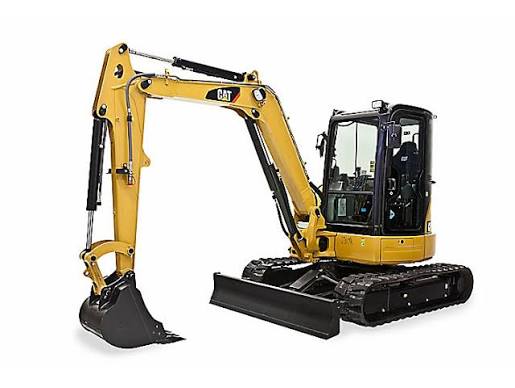

Comparable machines
