Bobcat

435

Mini Excavator

Operating Weight
10,556 lb
Max Digging Depth
135 in
Net Power
49.0 hp
All mini excavators

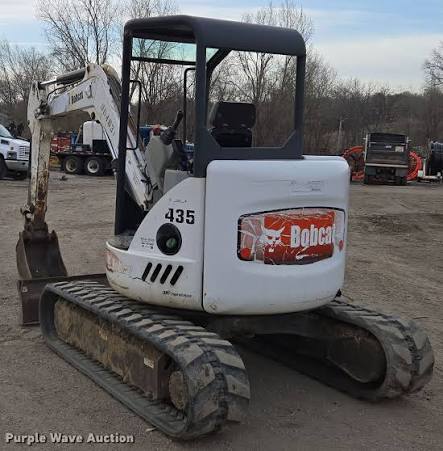

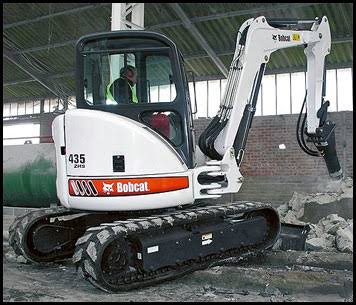

Bobcat 435 Mini Excavator
1 / 5
Image 1 of 5
Image: brokentractor.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,556 lb
Hydraulic Pump Flow Capacity29.8 gal/min

Engine

Engine specifications
Engine ModelV2003-M-DITE2B-BC1
Displacement122 in³
Power Measured @2,500 rpm
Net Power49.0 hp
Number of Cylinders4
Aspirationturbo

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Width to Outside of Tracks77 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Max Travel Speed5.5 mph
Shoe Size16 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth135 in
Max Reach Along Ground222 in
Max Vertical Wall Digging Depth102 in
Max Loading Height144 in
Shipping Length of Unit206 in
Max Cutting Height211 in
Shipping Height of Unit101 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Long Arm Excavator Option

Long Arm Excavator Option specifications
Operating Weight (Long Arm)10,803 lb
Max Digging Depth (Long Arm)149 in
Ground Pressure (Long Arm)4 psi
Max Cutting Height (Long Arm)221 in
Max Loading Height (Long Arm)154 in
Max Reach Along Ground (Long Arm)235 in
Max Vertical Wall Digging Depth (Long Arm)114 in
