Bobcat

E45

Mini Excavator

Operating Weight
10,077 lb
Max Digging Depth
130 in
Net Power
42.7 hp
All mini excavators

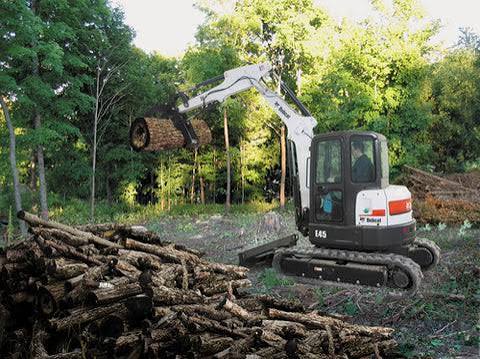

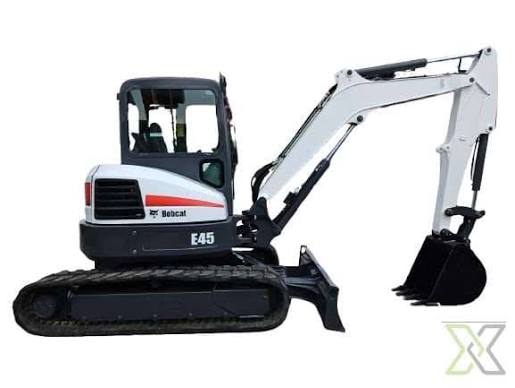

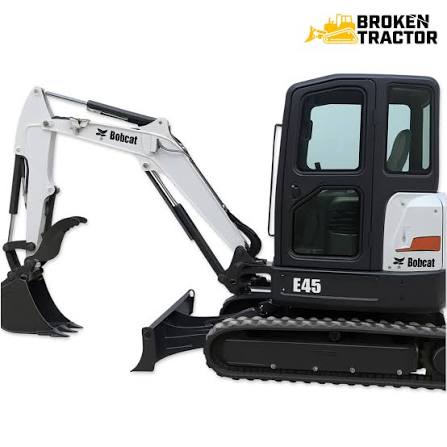

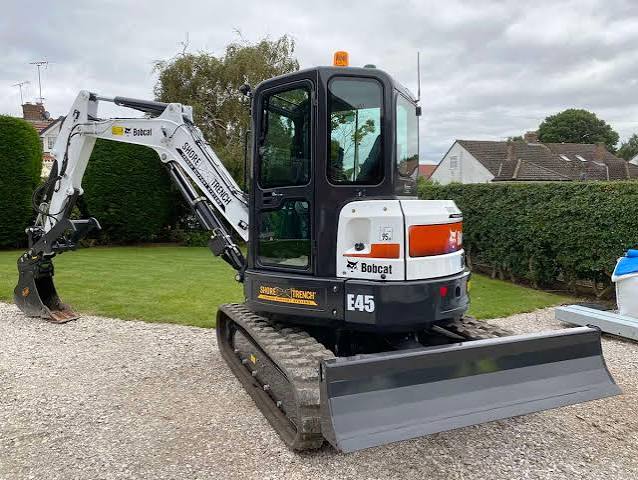

Bobcat E45 Mini Excavator
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,077 lb
Fuel Capacity21.0 gal

Engine

Engine specifications
Power Measured @2,200 rpm
Net Power42.7 hp
FuelDiesel
EmissionsTier 4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min
Operating pressure3,045 psi

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Height100 in
Length211 in
Width77 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.6 mph
Min Travel Speed1.5 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth130 in
Max Reach Along Ground223 in
Max.Dumping Height143 in
Boom Swing - Left75 °
Boom Swing - Right50 °
Arm Digging Force5,332 lb
Bucket Digging Force7,650 lb

Lift System

Lift System specifications
Max Lift Capacity5,131 lb
Lift Radius118 in
