Bobcat

E50

Mini Excavator

Operating Weight
10,677 lb
Max Digging Depth
139 in
Net Power
49.8 hp
All mini excavators

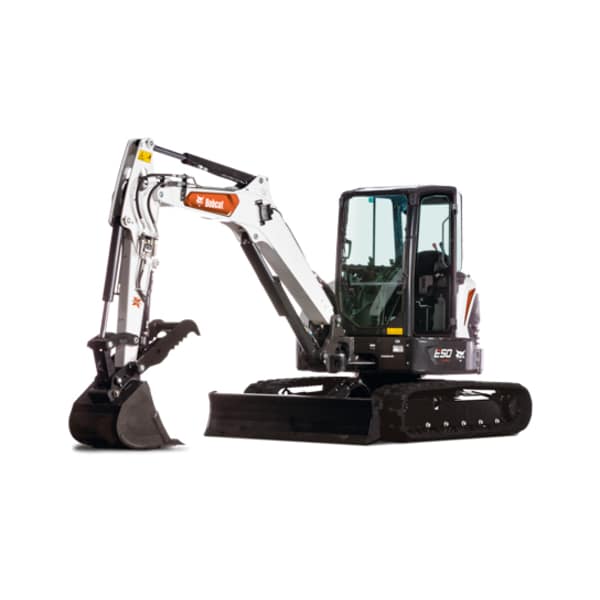

Bobcat E50 Mini Excavator
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,677 lb
Fuel Capacity21.1 gal

Engine

Engine specifications
Power Measured @2,200 rpm
Net Power49.8 hp
AspirationTier 4
FuelDiesel

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity20.0 gal/min

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Length219 in
Width78 in

Undercarriage

Undercarriage specifications
Max Travel Speed3.1 mph
Min Travel Speed1.9 mph

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth139 in
Max Reach Along Ground234 in
Max Cutting Height152 in
Boom Swing - Left75 °
Boom Swing - Right50 °

Bucket

Bucket specifications
Bucket digging Force - SAE8,977 lb
Arm digging Force6,744 lb

Lift System

Lift System specifications
Max Lift Capacity6,034 lb
Lift Radius118 in
