Bobcat

S130

Skid Steer Loader

Operating Weight
5,235 lb
Bucket Capacity
0.41 yd³
Max Speed
7.3 mph
Gross Power
46.0 hp
All skid steer loaders

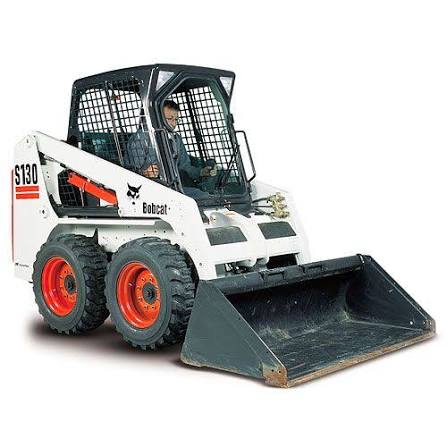

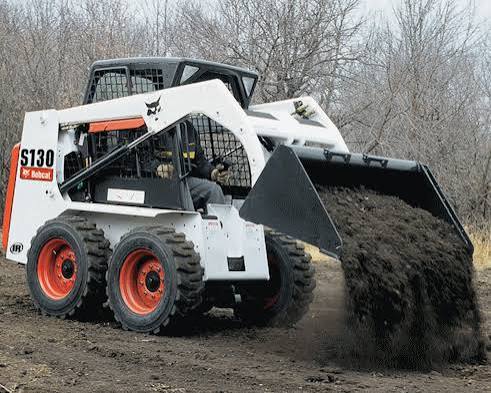

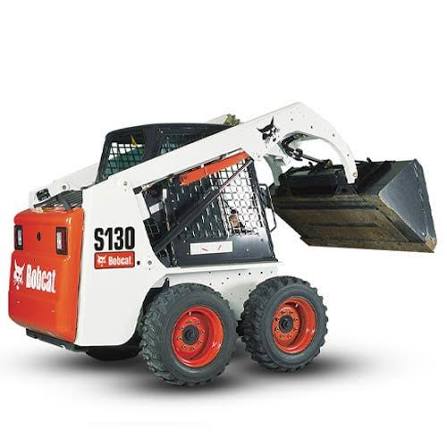

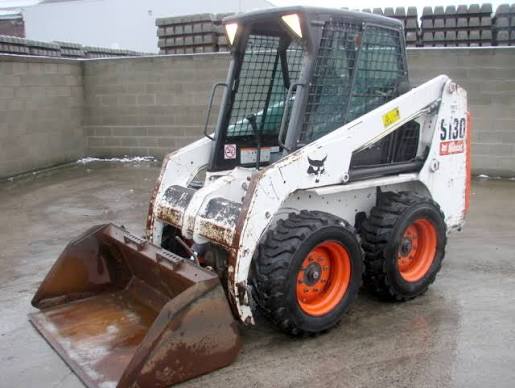

Bobcat S130 Skid Steer Loader
1 / 5
Image 1 of 5
Image: makana.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,235 lb
Max Speed7.3 mph
Fuel Capacity13.3 gal
Operating Speed7.3 mph

Engine

Engine specifications
Engine ModelV2203-M-DI-E2B-BC-3
Displacement134 in³
Power Measured @2,400 rpm
Gross Power46.0 hp
Number of Cylinders4

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity16.9 gal/min
Relief Valve Pressure2,600 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase36 in
Width Over Tires59 in
Reach at Max Lift and Dump23 in
Length with Bucket125 in
Clearance at Max Lift and Dump83 in
Turning Radius from Center - machine rear69 in
Length w/o Bucket96 in

Loader

Loader specifications
Bucket Capacity0.41 yd³
Operating Load Rating1,300 lb
Tipping Angle2,634 °
Operating Width62 in
