Bobcat

S450

Skid Steer Loader

Operating Weight
5,027 lb
Max Speed
7.1 mph
Gross Power
49.0 hp
All skid steer loaders

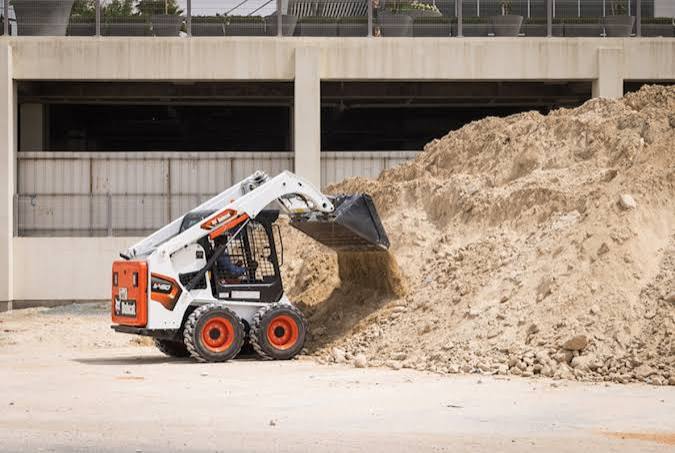

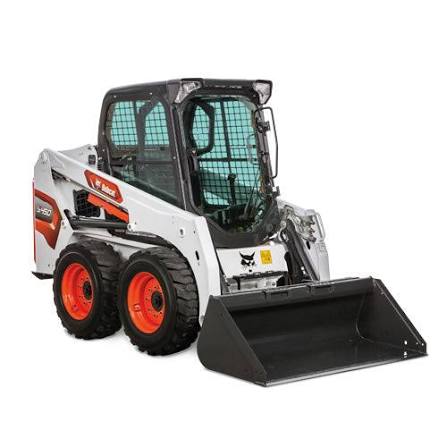

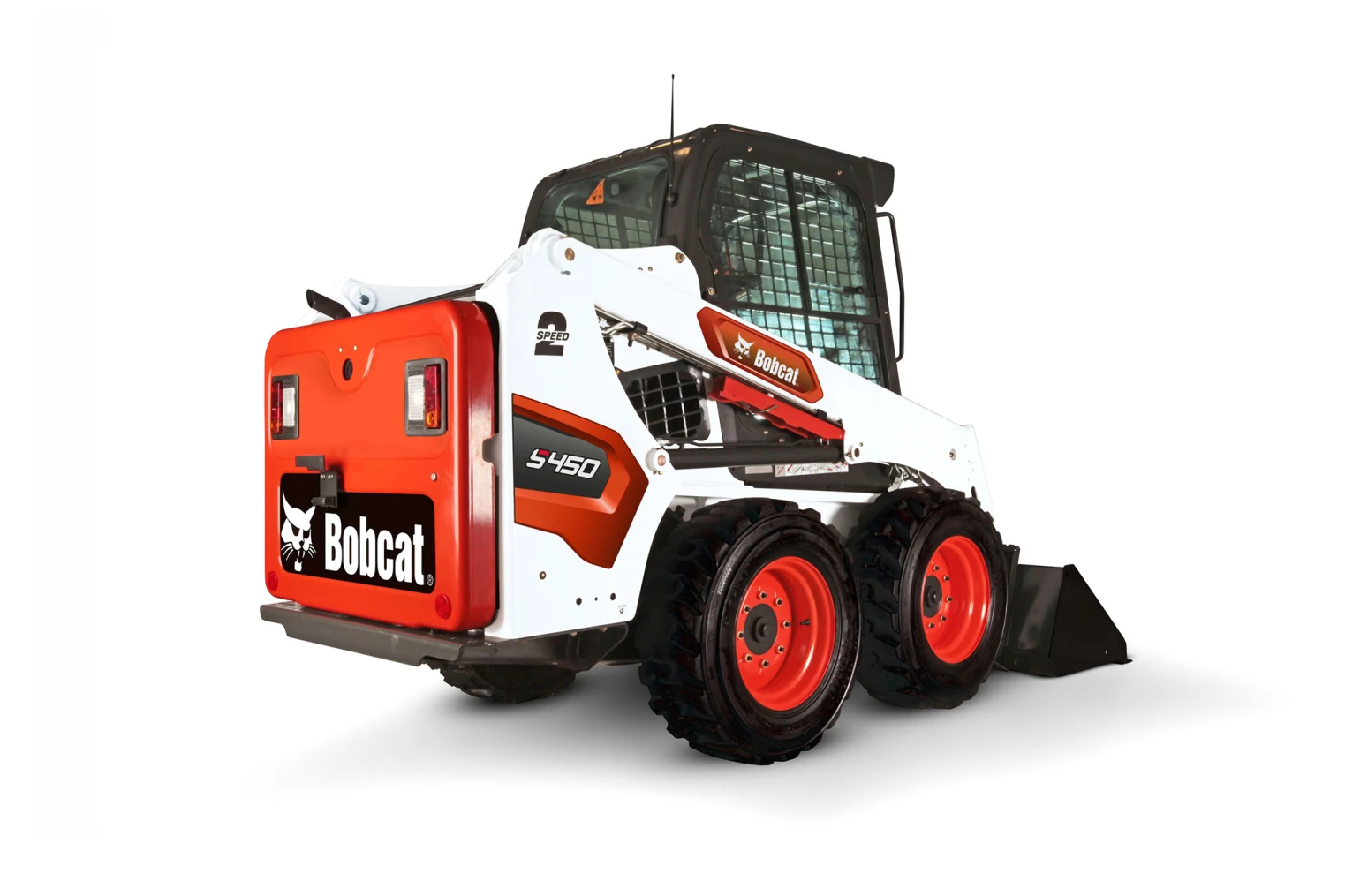

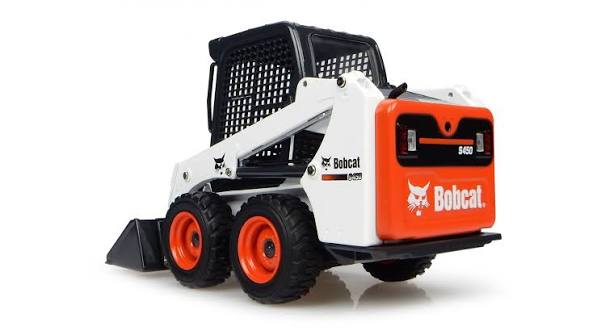

Bobcat S450 Skid Steer Loader
1 / 5
Image 1 of 5
Image: bobcatoftherockies.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,027 lb
Max Speed7.1 mph
Fuel Capacity14.4 gal
Lift Arm PathRadius

Engine

Engine specifications
Gross Power49.0 hp
AspirationTurbocharged
Fuel TypeTurbo Diesel
Emission Tier LevelTier 4
Cooling systemLiquid

Hydraulic System

Hydraulic System specifications
Relief Valve Pressure3,300 psi
Main pump flow standard16.7 gal/min

Dimensions

Dimensions specifications
Ground Clearance8 in
Height - Top of Cab78 in
Wheelbase36 in
Width Over Tires59 in
Reach at Max Lift and Dump21 in
Length with Bucket126 in
Clearance at Max Lift and Dump86 in
Length w/o Bucket98 in

General Specifications

General Specifications specifications
Engine Power HP (KW)49 (36.5) Starting 2019 Model Year
Operating Width IN. (CM)62 (157.5) Starting 2026 Model Year
OPERATING LOAD LBS. (KG)1,300 (590) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%1,300 (590) Starting 2020 Model Year

Loader

Loader specifications
Operating Load Rating1,300 lb
Tipping Angle2,599 °
Operating Width59 in
Bucket Width62 in
Loader SeriesM2-Series
Height to hinge pin110 in
