Bobcat
ASV
PT-70
Compact Track Loader
32 specifications
1 / 5

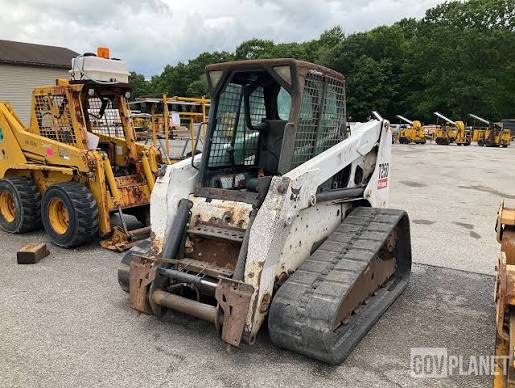

Image 1 of 5
Specifications
21 data points
Operating Specifications
| Operating Weight | 9,347 lb |
|---|---|
| Max Speed - high range | 6.6 mph |
| Fuel Capacity | 30.2 gal |
Engine
| Gross Power | 81.0 hp |
|---|---|
| Aspiration | turbocharged |
Hydraulic System
| Pump Flow | 21.2 gal/min |
|---|---|
| Relief Valve Pressure | 3,300 psi |
Dimensions
| Height - Top of Cab | 81 in |
|---|---|
| Reach at Max Lift and Dump | 24 in |
| Width Over Tracks | 78 in |
| Length with Bucket | 144 in |
| Clearance at Max Lift and Dump | 96 in |
| Turning Radius from Center - inc bucket | 83 in |
| Length - without Bucket | 115 in |
Undercarriage
| Ground Pressure | 4 psi |
|---|---|
| Length of Track on Ground | 65 in |
| Width of Track | 18 in |
| Number of Track Rollers per Side | 5 |
| Track Gauge | 61 in |
Loader
| Tipping Angle | 7,358 ° |
|---|---|
| Operating Load | 2,500 lb |
