Bobcat

T740

Compact Track Loader

Operating Weight
10,127 lb
Gross Power
74.0 hp
All compact track loaders

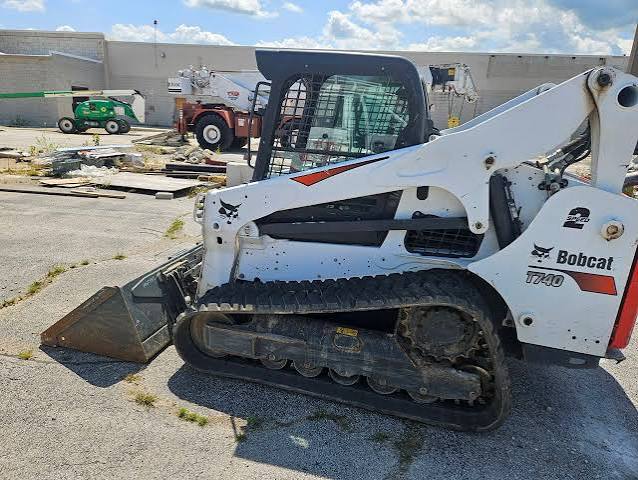

Bobcat T740 Compact Track Loader
1 / 5
Image 1 of 5
Image: bobcatofhouston.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,127 lb
Fuel Capacity44.4 gal

Engine

Engine specifications
Gross Power74.0 hp
Emission Tier LevelTier 4
FuelDiesel
Horsepower - Gross74.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow6.1 gal/min
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Height - Top of Cab81 in
Reach at Max Lift and Dump33 in
Width Over Tracks18 in
Length with Bucket142 in
Turning Radius from Center - machine rear7 in
Length - without Bucket115 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi

General Specifications

General Specifications specifications
Operating Width IN. (CM)NA Starting 2022 Model Year
Engine Power HP (KW)74 (55.2) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)3,200 (1,451) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%3,200 (1,451) Starting 2020 Model Year
Narrow Track Operating Width IN. (CM)Roller or Torsion SuspensionNA Starting 2022 Model Year
Wide Track Operating Width IN. (CM)Roller or Torsion Suspension78 (198.1) Starting 2022 Model Year
Wide Track Operating Width IN. (CM)78 (198.1) Starting 2022 Model Year

Loader

Loader specifications
Tipping Angle9,143 °
Operating Width78 in
Operating Load Rating3,200 lb
