Bobcat

T870

Compact Track Loader

Operating Weight
12,925 lb
Gross Power
100.0 hp
All compact track loaders

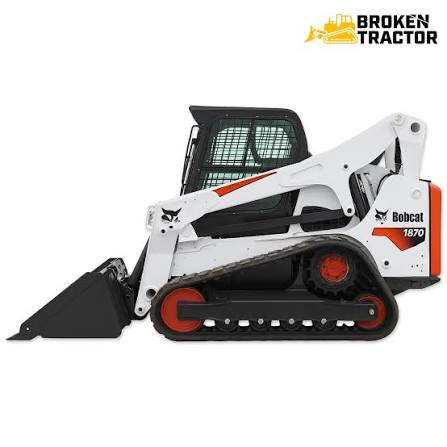

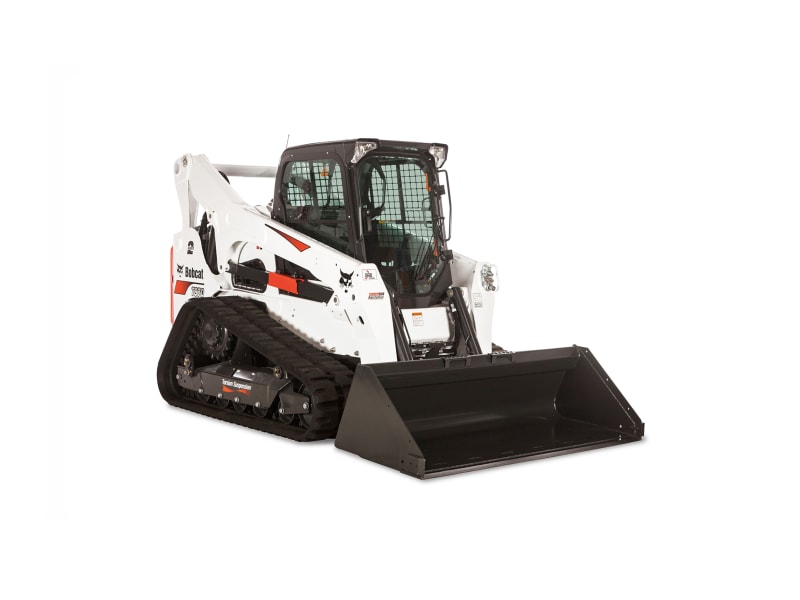

Bobcat T870 Compact Track Loader
1 / 5
Image 1 of 5
Image: bobcat.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight12,925 lb
Fuel Capacity32.6 gal
Cooling System Fluid Capacity4.0 gal

Engine

Engine specifications
Gross Power100.0 hp
AspirationTurbocharged
Emission Tier LevelTier 4
FuelDiesel

Hydraulic System

Hydraulic System specifications
Pump Flow23.0 gal/min
Relief Valve Pressure3,500 psi

Dimensions

Dimensions specifications
Height - Top of Cab84 in
Reach at Max Lift and Dump37 in
Width Over Tracks84 in
Length with Bucket155 in
Length - without Bucket120 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Length of Track on Ground70 in
Width of Track18 in

General Specifications

General Specifications specifications
Operating Width IN. (CM)83 (210.8) Starting 2019 Model Year
Engine Power HP (KW)100 (74.6) Starting 2019 Model Year
OPERATING LOAD LBS. (KG)3650 (1,656) Starting 2019 Model Year
Rated Operating Capacity LBS (KG) 50%3650 (1,656) Starting 2020 Model Year

Loader

Loader specifications
Tipping Angle10,430 °
Operating Load5,215 lb
Operating Width85 in
