BOMAG

BC 672 RB

Landfill Compactor

Operating Weight
70,989 lb
Max Speed
7.5 mph
Gross Power
449.0 hp
Net Power
442.0 hp
All landfill compactors

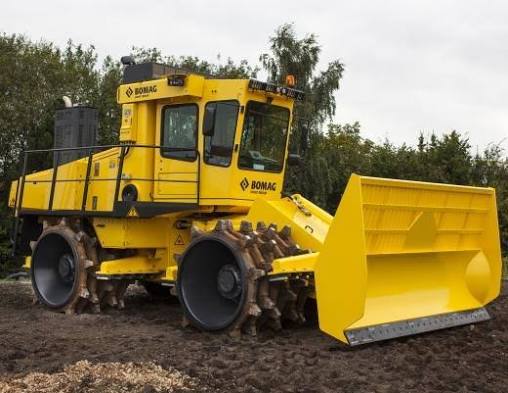

BOMAG BC 672 RB Landfill Compactor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight70,989 lb
Max Speed7.5 mph
Fuel Capacity132.1 gal
Hydraulic System Fluid Capacity92.5 gal
Engine Oil Capacity6.9 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBF6M1015CP
Power Measured @2,100 rpm
Gross Power449.0 hp
Net Power442.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab162 in
Wheelbase138 in
Overall Length27 in
Overall Width172 in
Height - Top of ROPS/FOPS162 in
Drum Diameter - Front65 in
Drum Diameter - Rear65 in
Length With Blade on Ground320 in
Width Over Wheels149 in

Transmission

Transmission specifications
Max Speed7.5 mph

Blades

Blades specifications
Blade Width172 in
Blade Height77 in

Wheels

Wheels specifications
Front Wheels Drum Diameter64 in
Front Wheels Drum Width53 in
Rear Wheels Drum Diameter64 in
Rear Wheels Drum Width44 in
