Caterpillar

816F II

Landfill Compactor

Max Speed
6.6 mph
Net Power
232.0 hp
All landfill compactors

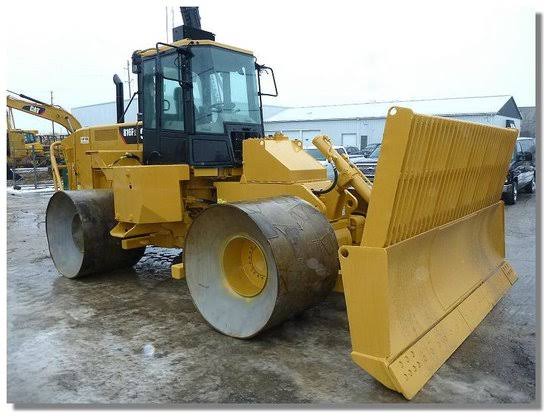

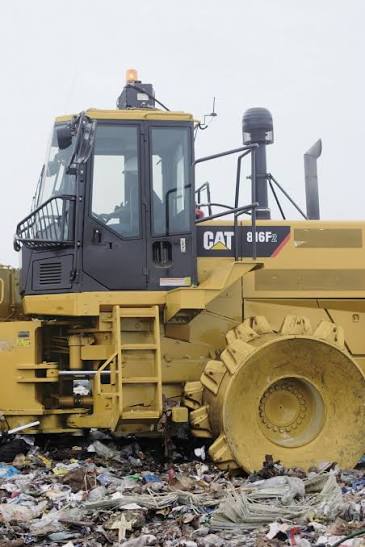

Caterpillar 816F II Landfill Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

48 data points

Operating Specifications

Operating Specifications specifications
Hydraulic System Fluid Capacity36.2 gal
Engine Oil Capacity9.0 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A
Ground Clearance18 in

Engine

Engine specifications
Power Measured @2,100 rpm
Net Power232.0 hp
Aspirationturbocharged
Stroke6 in
Bore4 in
Torque Rise19.0 %
SAE J1349232.0 hp
EEC 80/1269235.0 hp

Weights

Weights specifications
Operating Weight52,364 lb

Hydraulic System

Hydraulic System specifications
Relief Valve Setting2,248 psi
Lift Cylinder Bore x Stroke120.65 mm x 913.9 mm 4.75 in x 36 in

Dimensions

Dimensions specifications
Ground Clearance18 in
Wheel Base131 in
Length With Blade on Ground309 in
Width Over Wheels132 in
Height - Top of Hood98 in
Ground Clearance - Bumper32 in
Height - Top of Exhaust Pipe137 in
Height - Top of Cab with A/C154 in

Transmission

Transmission specifications
Max Speed6.6 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission Typefully modulated gear shifts
Forward - 13.5 mph
Forward - 25.9 mph
Reverse - 14.0 mph
Reverse - 26.6 mph

Brakes & Steering

Brakes & Steering specifications
StandardsMeet OSHA regulations

Cab & Operator

Cab & Operator specifications
ROPS/FOPSMeet SAE and ISO standards

Service Refill Capacities

Service Refill Capacities specifications
Fuel Tank117.8 gal
Differential - Final Drives - Front11.4 gal
Differential - Final Drives - Rear11.4 gal
Transmission13.2 gal
Cooling System14.5 gal
Crankcase9.0 gal
Hydraulic Tank23.2 gal

Blades

Blades specifications
Blade Width141 in

Wheels

Wheels specifications
Front Wheels Drum Diameter51 in
Front Wheels Drum Width40 in
Rear Wheels Drum Diameter51 in
Rear Wheels Drum Width40 in

Axles

Axles specifications
FrontFixed

Sound Performance

Sound Performance specifications
StandardsMeet required sound standards
