BOMAG

BC 672 RB-2

Landfill Compactor

Operating Weight
71,000 lb
Max Speed
7.5 mph
Gross Power
449.0 hp
All landfill compactors

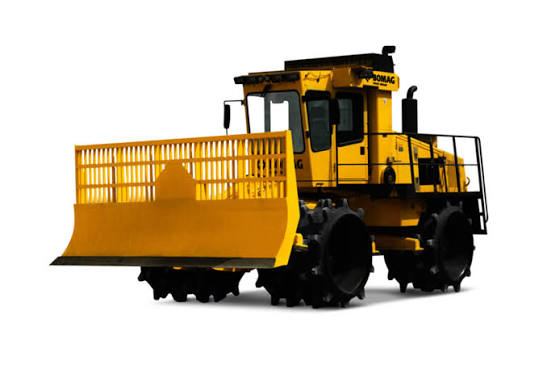

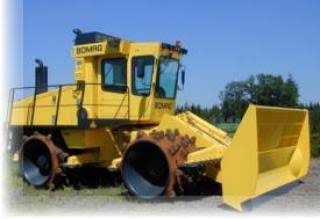

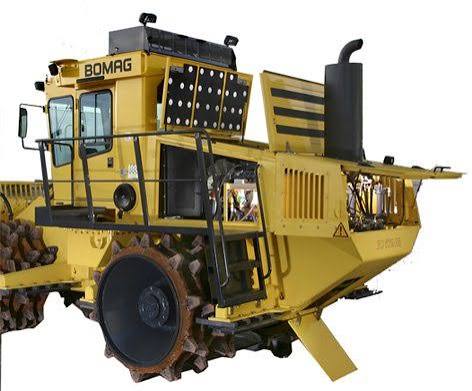

BOMAG BC 672 RB-2 Landfill Compactor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight71,000 lb
Fuel Capacity132.1 gal
Hydraulic System Fluid Capacity92.5 gal
Engine Oil Capacity6.9 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelTCD 2015V06
Power Measured @2,100 rpm
Gross Power449.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab162 in
Wheelbase138 in
Width Over Wheels149 in

Transmission

Transmission specifications
Max Speed7.5 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission Typehydrostatic

Blades

Blades specifications
Blade Width172 in
Blade Height77 in

Wheels

Wheels specifications
Front Wheels Drum Diameter64 in
Front Wheels Drum Width53 in
Rear Wheels Drum Diameter64 in
Rear Wheels Drum Width44 in
