BOMAG

BC 772 RB

Landfill Compactor

Operating Weight
81,205 lb
Max Speed
7.5 mph
Gross Power
442.6 hp
All landfill compactors

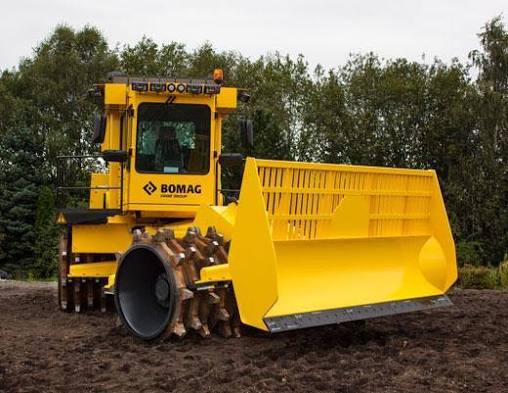

BOMAG BC 772 RB Landfill Compactor
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

19 data points

Operating Specifications

Operating Specifications specifications
Operating Weight81,205 lb
Fuel Capacity132.1 gal
Hydraulic System Fluid Capacity92.5 gal
Engine Oil Capacity6.9 gal
Operating Voltage24 V

Engine

Engine specifications
Engine ModelBF6M1015CP
Gross Power442.6 hp

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab162 in
Wheelbase138 in
Length With Blade on Ground320 in
Width Over Wheels149 in

Transmission

Transmission specifications
Max Speed7.5 mph

Blades

Blades specifications
Blade Width172 in
Blade Height77 in

Wheels

Wheels specifications
Front Wheels Drum Diameter64 in
Front Wheels Drum Width53 in
Rear Wheels Drum Diameter64 in
Rear Wheels Drum Width44 in
