BOMAG

BC 772 RB-2

Landfill Compactor

Operating Weight
77,820 lb
Max Speed
7.5 mph
Gross Power
442.0 hp
All landfill compactors

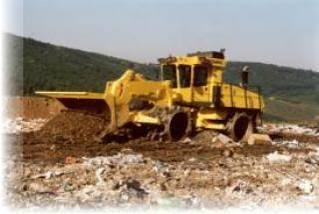

BOMAG BC 772 RB-2 Landfill Compactor
1 / 5
Image 1 of 5
Image: plantandequipment.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight77,820 lb
Fuel Capacity132.1 gal
Hydraulic System Fluid Capacity92.5 gal
Engine Oil Capacity9.6 gal
Operating Voltage24 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelTCD 2015V06
Power Measured @2,100 rpm
Gross Power442.0 hp
Number of Cylinders6

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab163 in
Wheelbase138 in
Width Over Wheels149 in

Transmission

Transmission specifications
Max Speed7.5 mph
Number of Forward Gears2
Number of Reverse Gears2
Transmission Typehydrostatic

Blades

Blades specifications
Blade Width150 in
Blade Height41 in

Wheels

Wheels specifications
Front Wheels Drum Diameter62 in
Front Wheels Drum Width53 in
Rear Wheels Drum Diameter62 in
Rear Wheels Drum Width44 in
