BOMAG

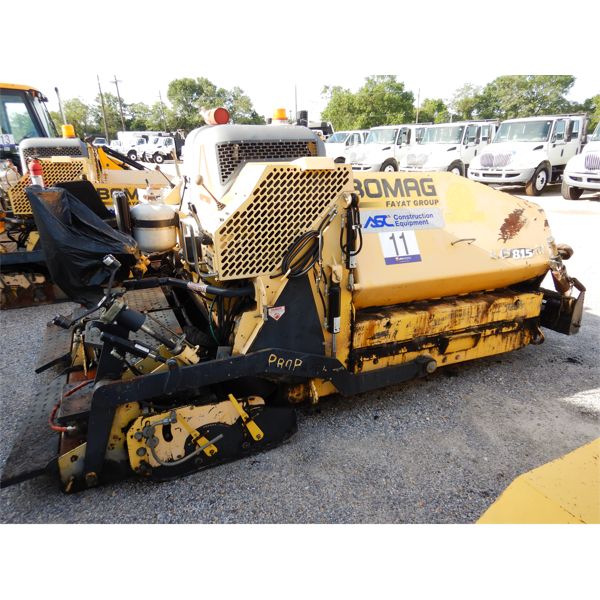

BF 815
- Operating Weight w/ Screed
- 15,950 lb
- Paving Width - max
- 181 in
- Gross Power
- 85.0 hp
- Length w/ Screed
- 145 in
1 / 5
Image 1 of 5
Specifications
16 data points
Operating Specifications
| Operating Weight w/ Screed | 15,950 lb |
|---|---|
| Fuel Capacity | 25.1 gal |
| Hydraulic System Fluid Capacity | 34.9 gal |
| Cooling System Fluid Capacity | 3.5 gal |
Engine
| Engine Model | 4B 3.3 T |
|---|---|
| Gross Power | 85.0 hp |
| Make | Cummins |
Dimensions
| Transport Width | 103 in |
|---|---|
| Transport Height | 74 in |
| Track Width | 12 in |
| Length w/ Screed | 145 in |
Hopper/Paver
| Paving Width - max | 181 in |
|---|---|
| Paving Speed - max | 2.1 mph |
| Hopper Capacity | 8 lb |
| Travel Speed - max | 4.2 mph |
| Paving Thickness - max | 6 in |
