BOMAG

BW 135 AD

Smooth Drum Roller

Operating Weight
7,853 lb
Max Speed
6.3 mph
Drum Width
51 in
Gross Power
46.2 hp
All smooth drum rollers

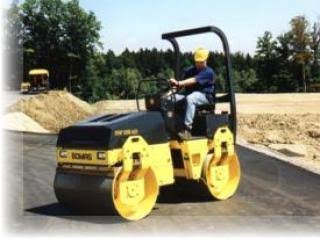

BOMAG BW 135 AD Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,853 lb
Max Speed6.3 mph
Fuel Capacity14.6 gal
Operating Width54 in
Operating Voltage12 V
Engine Oil Capacity1.8 gal

Engine

Engine specifications
Engine ModelD 2011 L3i
Power Measured @2,800 rpm
Gross Power46.2 hp
Number of Cylinders3
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab107 in
Wheelbase6 in
Overall Length9 in
Overall Width54 in

Drum

Drum specifications
Drum Width51 in
Drum Diameter32 in
Vibration Frequency 159 vpm
Vibration Frequency 266 vpm
Static Linear Load6 lb-ft
Vibration Frequency3,560 – 3,960 vpm
Frequency3,560 – 3,960 vpm
Nominal Amplitude - Med0 in
