BOMAG

BW 135 AD-5

Smooth Drum Roller

Operating Weight
8,488 lb
Max Speed
6.2 mph
Drum Width
51 in
Gross Power
45.1 hp
All smooth drum rollers

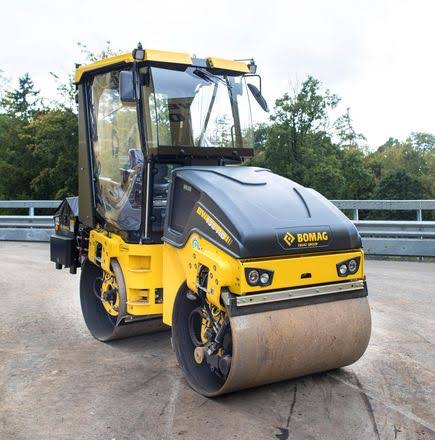

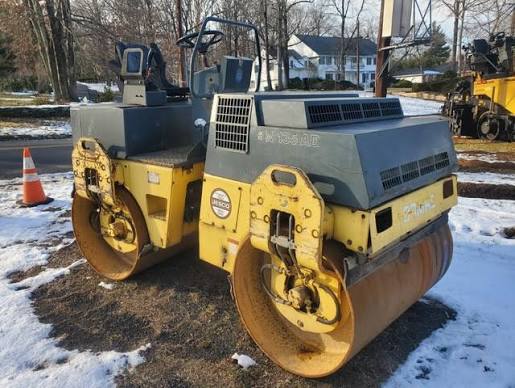

BOMAG BW 135 AD-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,488 lb
Max Speed6.2 mph
Fuel Capacity81.9 gal
Operating Width55 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelV2403
Power Measured @2,400 rpm
Gross Power45.1 hp
Number of Cylinders4
Engine MakeKubota
MakeKubota
Cooling methodWater

Weights

Weights specifications
Grossweight9,259 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab76 in
Wheelbase75 in
Overall Length112 in
Overall Width55 in
Turning Radius - Inside105 in
Drum Diameter - Front36 in
Drum Diameter - Rear36 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

General Specifications

General Specifications specifications
Engine typeKubota D2403 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)51.2 (130) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)104.9 (266.5) — Starting 2024 Model Year
WIDTH IN. (CM)54.7 (139) — Starting 2024 Model Year
FREQUENCY HZ50/56 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width51 in
Vibration Frequency 150 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High10,791 lb
Vibration Frequency 256 vpm
Static Linear Load7 lb-ft
Vibration Frequency58 – 47 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
SystemOscillatory Articulation
