BOMAG

BW 145 D-5

Smooth Drum Roller

Operating Weight
10,472 lb
Max Speed
5.6 mph
Drum Width
56 in
Gross Power
74.3 hp
All smooth drum rollers

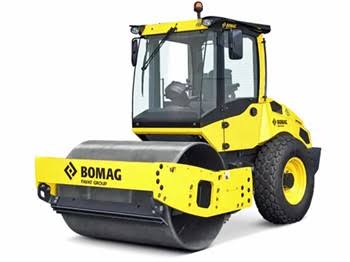

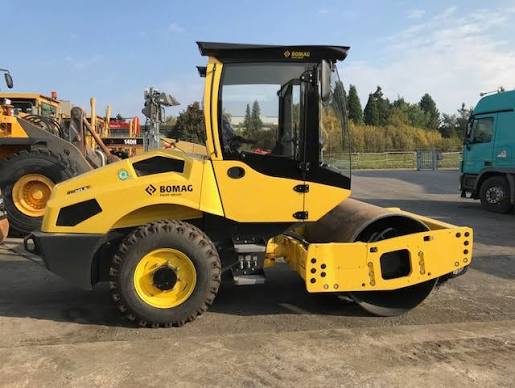

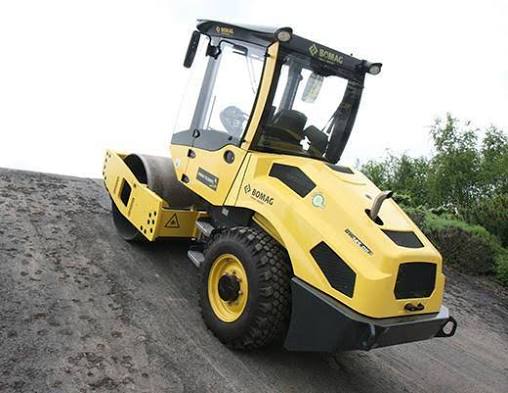

BOMAG BW 145 D-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: allequiprental.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight10,472 lb
Max Speed5.6 mph
Fuel Capacity29.1 gal
Operating Width61 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelV3307 CR-T
Power Measured @2,400 rpm
Gross Power74.3 hp
Number of Cylinders4
AspirationTier 4f
Engine MakeKubota
MakeDeutz
FuelDiesel
Cooling methodWater
Emissions levelStage 4

Weights

Weights specifications
Grossweight12,346 lb
Loaded Weight5,490 lb

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab108 in
Wheelbase89 in
Overall Length172 in
Overall Width56 in
Turning Radius - Inside114 in
Operating Width56 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

Tires & Wheels

Tires & Wheels specifications
Tires12.5-20 12PR

General Specifications

General Specifications specifications
Engine typeDeutz TD 2.9 L04 / Kubota V3307 CR-T — Starting 2024 Model Year
DRUM WIDTH IN. (CM)56.3 (143) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)113.8 (289) — Starting 2024 Model Year
WIDTH IN. (CM)61.4 (155.6) — Starting 2024 Model Year
FREQUENCY HZ31/35 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width56 in
Drum Diameter42 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High12,589 lb
Vibration Frequency 235 vpm
Static Linear Load8 lb-ft
Vibration Frequency31 – 38 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
SystemOscillatory Articulation
