BOMAG

BW 151 AD-4 (HF)

Smooth Drum Roller

Operating Weight
17,798 lb
Max Speed
6.6 mph
Drum Width
66 in
Gross Power
80.5 hp
All smooth drum rollers

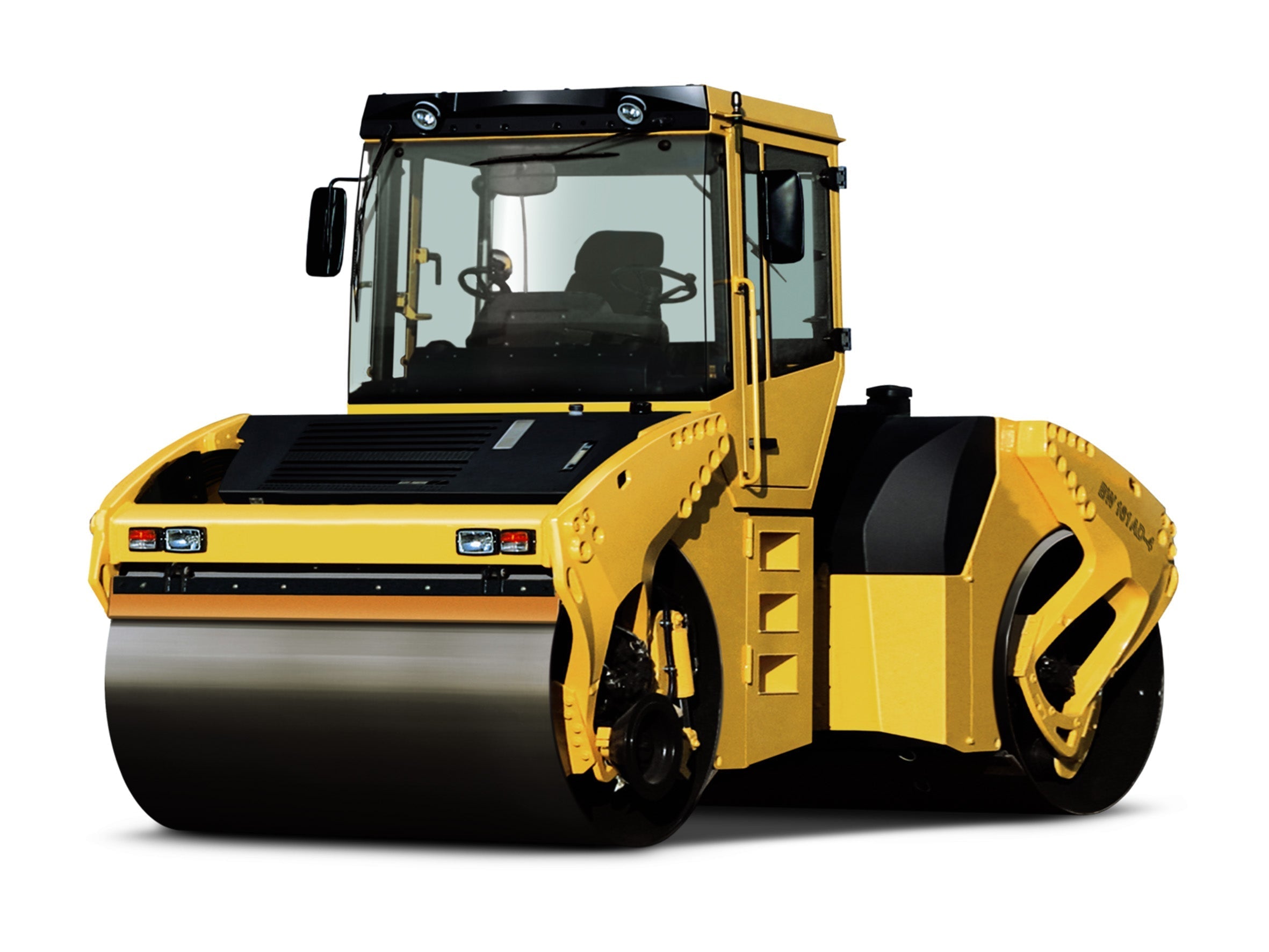

BOMAG BW 151 AD-4 (HF) Smooth Drum Roller
1 / 5
Image 1 of 5
Image: cabglass.co.za

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Operating Weight17,798 lb
Max Speed6.6 mph
Fuel Capacity42.3 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF4M 2011
Power Measured @2,500 rpm
Gross Power80.5 hp
Number of Cylinders4

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab119 in
Wheelbase11 in
Overall Length15 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 140 vpm
Vibration Frequency 260 vpm
Static Linear Load11 lb-ft
Nominal Amplitude - Med0 in
