BOMAG

BW 151 AD-5

Smooth Drum Roller

Operating Weight
16,755 lb
Max Speed
7.5 mph
Gross Power
74.3 hp
All smooth drum rollers

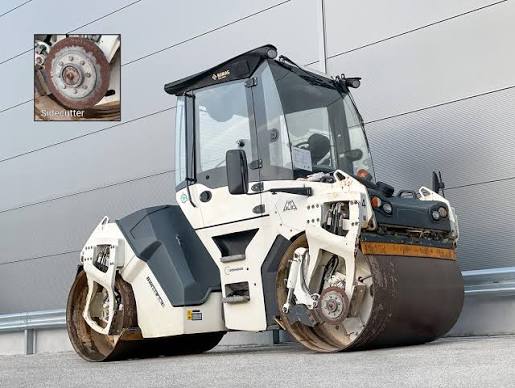

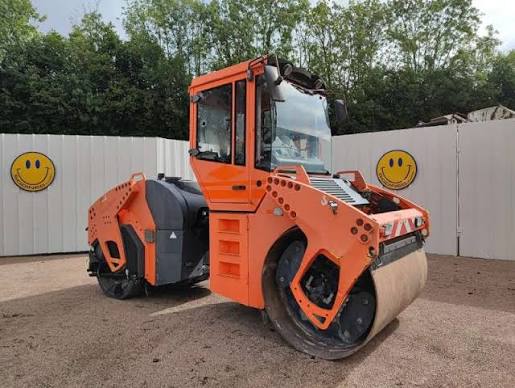

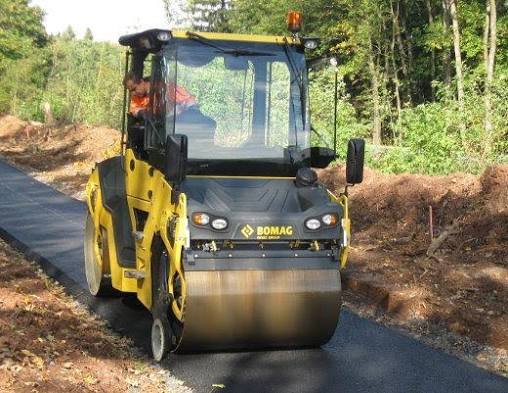

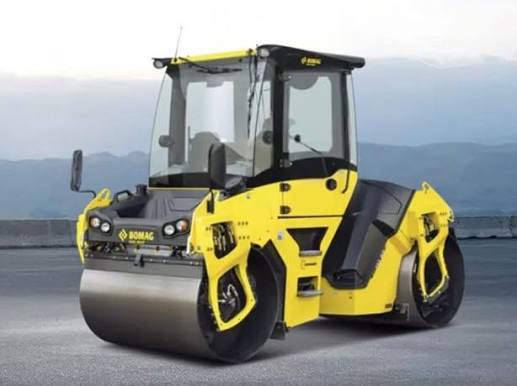

BOMAG BW 151 AD-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: etlhire.co.nz

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,755 lb
Max Speed7.5 mph
Fuel Capacity33.0 gal
Operating Voltage12 V
Water Spray Tank Fluid Capacity158.5 gal

Engine

Engine specifications
Power Measured @2,400 rpm
Gross Power74.3 hp
Number of Cylinders4
Engine MakeKubota
MakeKubota
Engine TypeV3307 CR-T
Emissions Certification3b/4
Cooling methodWater

Weights

Weights specifications
Grossweight20,503 lb
Front axle weight8,598 lb
Rear axle weight8,157 lb
Static linear load, front11 lb-ft
Static linear load, rear10 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab119 in
Wheelbase130 in
Overall Length173 in
Overall Width66 in
Turning Radius - Inside173 in
Track radius inner173 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

General Specifications

General Specifications specifications
Engine typeKubota — Starting 2021 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2021 Model Year
INSIDE TURN RADIUS IN. (CM)172.8 (439) — Starting 2021 Model Year
WIDTH IN. (CM)74.2 (188.5) — Starting 2021 Model Year
FREQUENCY HZ45/55 — Starting 2021 Model Year

Drum

Drum specifications
Drum Diameter43 in
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High10,116 lb
Vibration Frequency 250 vpm
Vibration Frequency50 – 70 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
