BOMAG

BW 154 AD-5

Smooth Drum Roller

Operating Weight
18,298 lb
Max Speed
7.5 mph
Drum Width
59 in
Gross Power
74.3 hp
All smooth drum rollers

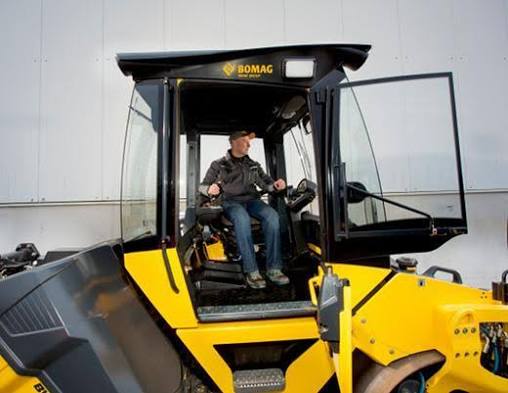

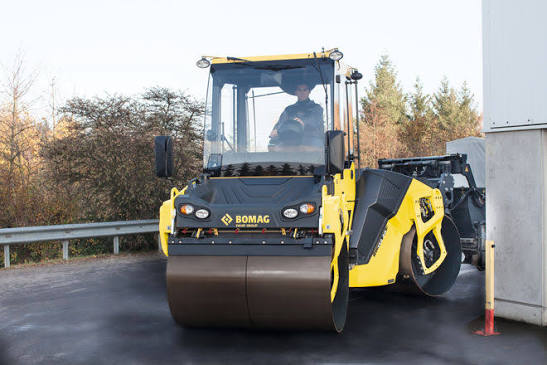

BOMAG BW 154 AD-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight18,298 lb
Max Speed7.5 mph
Fuel Capacity33.0 gal
Operating Voltage12 V
Water Spray Tank Fluid Capacity158.5 gal

Engine

Engine specifications
Power Measured @2,400 rpm
Gross Power74.3 hp
Number of Cylinders4
Engine MakeKubota
Engine TypeV3307 CR-T
Emissions Certification3b/4
Cooling methodWater

Weights

Weights specifications
Grossweight21,826 lb
Front axle weight9,370 lb
Rear axle weight8,929 lb
Static linear load, front12 lb-ft
Static linear load, rear11 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab119 in
Wheelbase130 in
Overall Length173 in
Overall Width66 in
Track radius inner173 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

General Specifications

General Specifications specifications
Engine typeKubota V3307 CR-T — Starting 2024 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)172.8 (439) — Starting 2019 Model Year
WIDTH IN. (CM)72.6 (184.4) — Starting 2024 Model Year
FREQUENCY HZ45/55 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width59 in
Drum Diameter43 in
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High10,116 lb
Vibration Frequency 250 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
