BOMAG

BW 154 APO-4I

Smooth Drum Roller

Operating Weight
7,300 lb
Max Speed
7.5 mph
Drum Width
59 in
Gross Power
743.0 hp
All smooth drum rollers

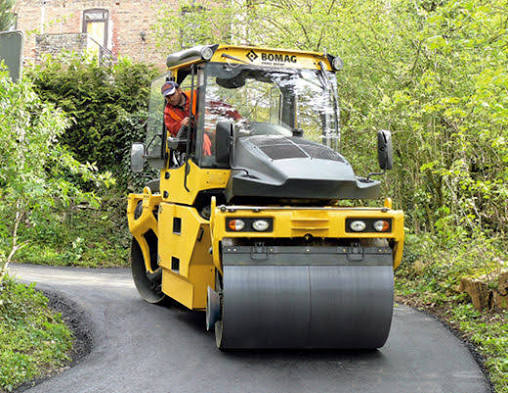

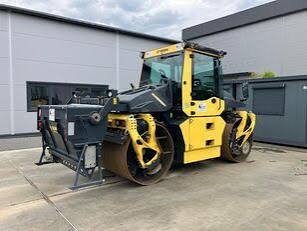

BOMAG BW 154 APO-4I Smooth Drum Roller
1 / 5
Image 1 of 5
Image: toolzon.com

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,300 lb
Max Speed7.5 mph
Fuel Capacity38.3 gal
Operating Voltage12 V
Water Spray Tank Fluid Capacity198.1 gal

Engine

Engine specifications
Power Measured @2,400 rpm
Gross Power743.0 hp
Number of Cylinders4
Engine MakeKubota
Fuel TypeDiesel
Engine TypeV3307 CR-T
Emissions Certification3b/4
Cooling methodWater

Weights

Weights specifications
Grossweight8,800 lb
Front axle weight3,550 lb
Rear axle weight3,750 lb
Static linear load, front20 lb-ft
Static linear load, rear21 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab117 in
Wheelbase114 in
Overall Length157 in
Overall Width66 in
Track radius inner116 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

General Specifications

General Specifications specifications
Engine typeKubota — Starting 2019 Model Year
DRUM WIDTH IN. (CM)59.1 (150) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)116.1 (295) — Starting 2019 Model Year
WIDTH IN. (CM)65.6 (166.5) — Starting 2019 Model Year
FREQUENCY HZ45/46 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width59 in
Drum Diameter43 in
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High14,163 lb
Vibration Frequency 246 vpm
Frequency45 vpm

Steering System

Steering System specifications
SystemOscilatory articulation
