BOMAGBOMAG

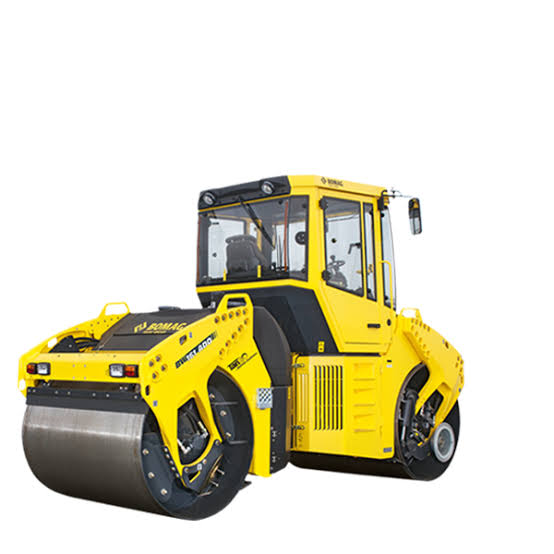

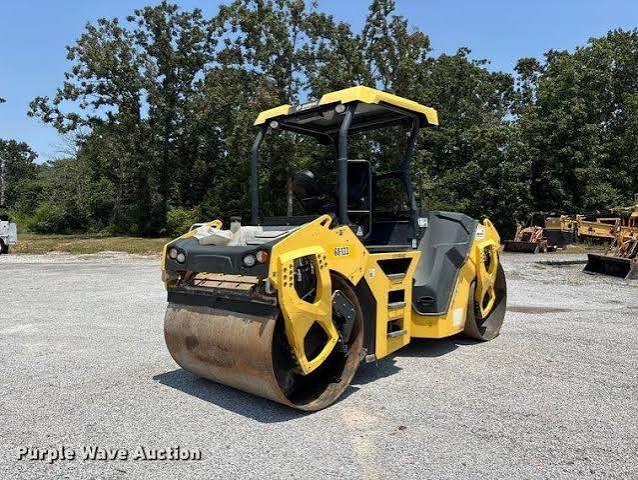

BW 191 ADO-5
Smooth Drum Roller
35 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 21,460 lb |
|---|---|
| Max Speed | 8.1 mph |
| Fuel Capacity | 34.1 gal |
| Operating Voltage | 12 V |
| Hydraulic System Fluid Capacity | 219.3 gal |
Engine
| Engine Model | BF4L 913 |
|---|---|
| Power Measured @ | 2,150 rpm |
| Gross Power | 102.0 hp |
| Net Power | 93.9 hp |
| Number of Cylinders | 4 |
| Aspiration | natural |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Height - Top of Cab | 115 in |
| Wheelbase | 11 in |
| Overall Length | 16 in |
| Overall Width | 74 in |
| Drum Diameter - Front | 49 in |
| Drum Diameter - Rear | 49 in |
Drum
| Drum Width | 66 in |
|---|---|
| Drum Diameter | 48 in |
| Vibration Frequency 1 | 30 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 13,938 lb |
| Vibration Frequency 2 | 45 vpm |
| Centrifugal Force - Low | 13,039 lb |
| Nominal Amplitude - Low | 0 in |
