BOMAG

BW 161 AD-4

Smooth Drum Roller

Operating Weight
21,164 lb
Max Speed
7.1 mph
Drum Width
66 in
Gross Power
134.0 hp
All smooth drum rollers

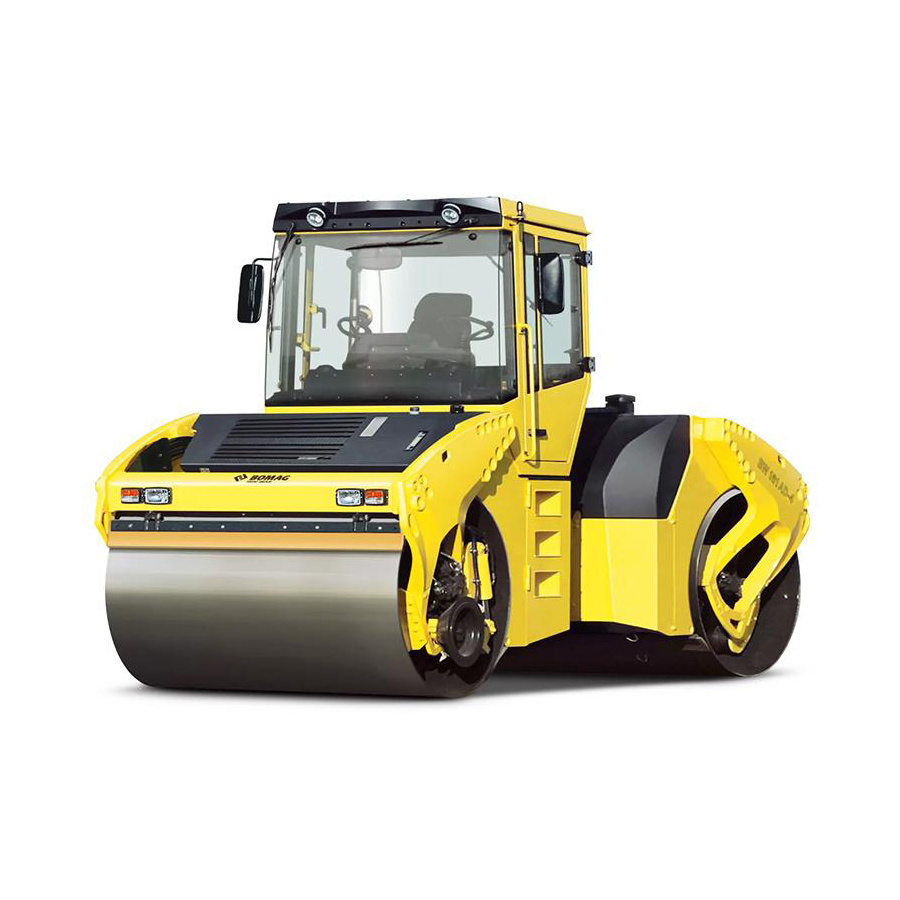

BOMAG BW 161 AD-4 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: hmd.group

Specifications

39 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,164 lb
Max Speed7.1 mph
Fuel Capacity52.9 gal
Operating Voltage12 V
Engine Oil Capacity2.6 gal
Water Spray Tank Fluid Capacity198.1 gal

Engine

Engine specifications
Engine ModelTCD 2012 L04
Power Measured @2,300 rpm
Gross Power134.0 hp
Number of Cylinders4
Engine MakeKubota
MakeDeutz
Fuel TypeDiesel
Engine TypeV3307 CR-T
Emissions Certification3b/4
Cooling methodWater

Weights

Weights specifications
Grossweight23,369 lb
Front axle weight11,244 lb
Rear axle weight9,921 lb
Static linear load, front14 lb-ft
Static linear load, rear12 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab119 in
Wheelbase143 in
Overall Length15 in
Overall Width73 in
Track radius inner8 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High20,233 lb
Vibration Frequency 260 vpm
Static Linear Load14 lb-ft
Frequency45 vpm
Nominal Amplitude - Med0 in

Steering System

Steering System specifications
SystemOscilatory articulation
