BOMAG

BW 161 ADO-5

Smooth Drum Roller

Operating Weight
21,164 lb
Max Speed
7.5 mph
Drum Width
66 in
Gross Power
114.0 hp
All smooth drum rollers

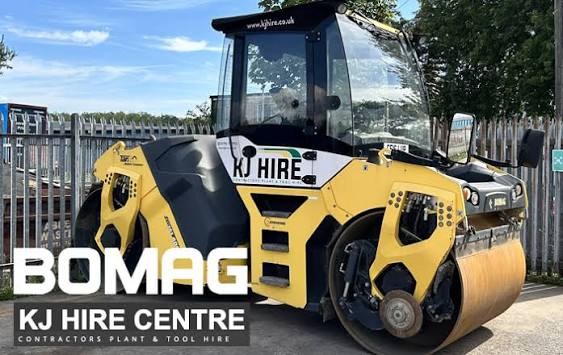

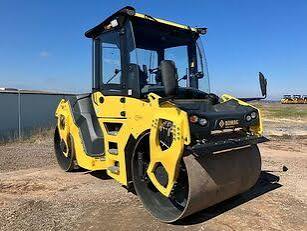

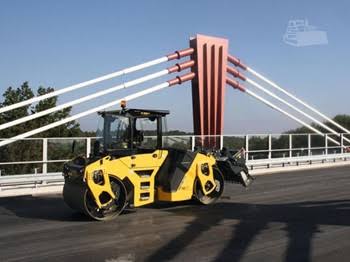

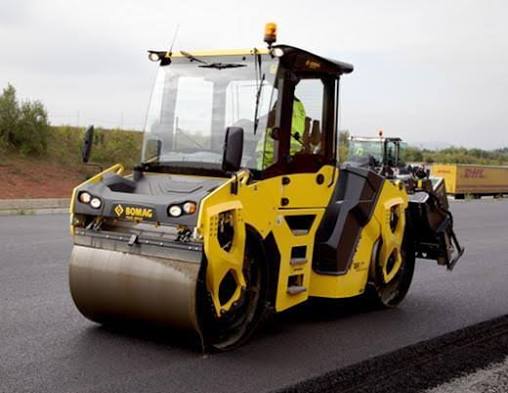

BOMAG BW 161 ADO-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: power-equip.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,164 lb
Max Speed7.5 mph
Fuel Capacity38.3 gal
Operating Width72 in
Operating Voltage12 V
Water Spray Tank Fluid Capacity198.1 gal

Engine

Engine specifications
Engine ModelV3800 CR-TI
Power Measured @2,600 rpm
Gross Power114.0 hp
Number of Cylinders4
Engine MakeKubota
MakeKubota
Cooling methodWater

Weights

Weights specifications
Grossweight23,369 lb
Front axle weight11,244 lb
Rear axle weight9,921 lb
Static linear load, front14 lb-ft
Static linear load, rear12 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab121 in
Wheelbase143 in
Overall Length191 in
Overall Width73 in
Turning Radius - Inside192 in
Drum Diameter - Front48 in
Drum Diameter - Rear48 in
Track radius inner193 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti Disc

General Specifications

General Specifications specifications
Engine typeKubota — Starting 2021 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2021 Model Year
INSIDE TURN RADIUS IN. (CM)192.9 (490) — Starting 2021 Model Year
WIDTH IN. (CM)72.3 (183.6) — Starting 2021 Model Year
FREQUENCY HZ40/55 — Starting 2021 Model Year

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 140 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High20,233 lb
Vibration Frequency 255 vpm

Steering System

Steering System specifications
SystemOscilatory Articulation
