BOMAG

BW 164 AD

Smooth Drum Roller

Operating Weight
21,857 lb
Max Speed
8.1 mph
Drum Width
66 in
Gross Power
102.0 hp
All smooth drum rollers

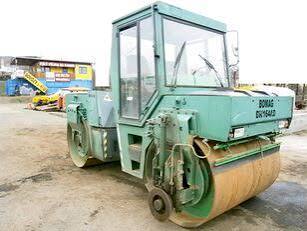

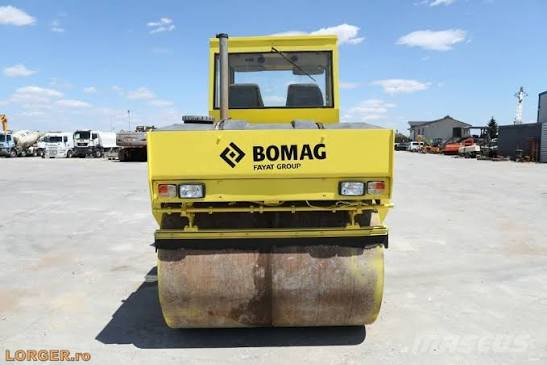

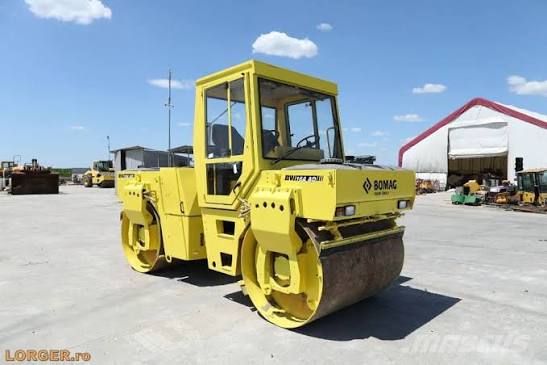

BOMAG BW 164 AD Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machineryline.info

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight21,857 lb
Max Speed8.1 mph
Fuel Capacity34.1 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity219.3 gal

Engine

Engine specifications
Engine ModelBF4L 913
Power Measured @2,150 rpm
Gross Power102.0 hp
Net Power93.9 hp
Number of Cylinders4
Aspirationnatural

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab115 in
Wheelbase11 in
Overall Length16 in
Overall Width74 in
Drum Diameter - Front49 in
Drum Diameter - Rear49 in

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 140 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High9,892 lb
Vibration Frequency 250 vpm
Centrifugal Force - Low12,365 lb
Nominal Amplitude - Low0 in
