BOMAG

BW 174 APO-4F

Smooth Drum Roller

Operating Weight
20,944 lb
Max Speed
6.6 mph
Gross Power
99.8 hp
All smooth drum rollers

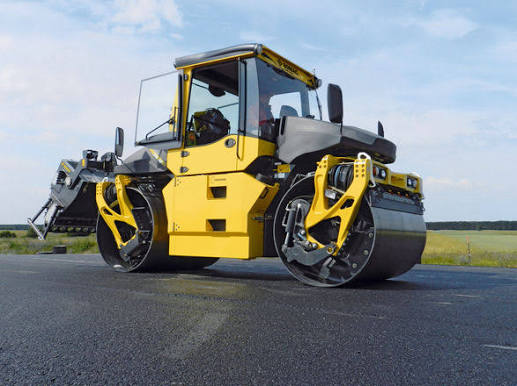

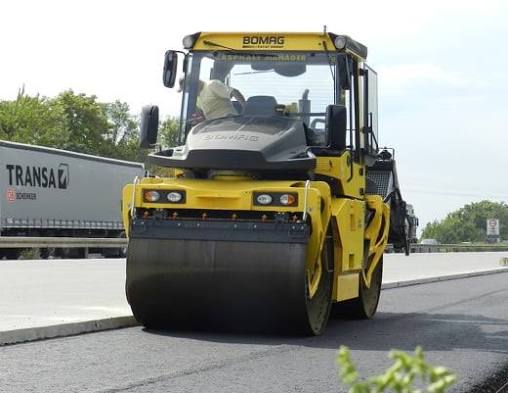

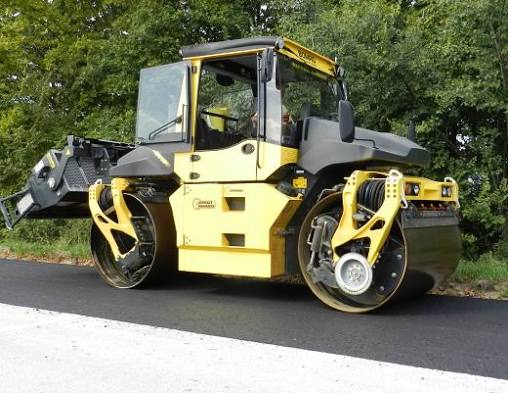

BOMAG BW 174 APO-4F Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight20,944 lb
Max Speed6.6 mph
Fuel Capacity47.6 gal
Water Spray Tank Fluid Capacity179.7 gal

Engine

Engine specifications
Engine ModelTCD 3.6 L4
Power Measured @2,000 rpm
Gross Power99.8 hp
Number of Cylinders4
Engine MakeDeutz
FuelDiesel
Cooling methodLiquid

Weights

Weights specifications
Grossweight24,471 lb
Front axle weight9,921 lb
Rear axle weight11,023 lb
Static linear load, front22 lb-ft
Static linear load, rear25 lb-ft

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab119 in
Wheelbase126 in
Overall Length174 in
Overall Width72 in
Drum Diameter - Front49 in
Drum Diameter - Rear49 in
Track radius inner116 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMechanichal

General Specifications

General Specifications specifications
Engine typeDeutz — Starting 2019 Model Year
DRUM WIDTH IN. (CM)66.1 (168) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)116 (294.6) — Starting 2019 Model Year
WIDTH IN. (CM)71.9 (182.6) — Starting 2019 Model Year
FREQUENCY HZ45/46 — Starting 2019 Model Year

Drum

Drum specifications
Vibration Frequency 145 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High13,713 lb
Vibration Frequency 246 vpm

Steering System

Steering System specifications
System2-p pivoted
