BOMAG

BW 177 D-3

Smooth Drum Roller

Operating Weight
15,939 lb
Max Speed
6.3 mph
Drum Width
66 in
Gross Power
80.5 hp
All smooth drum rollers

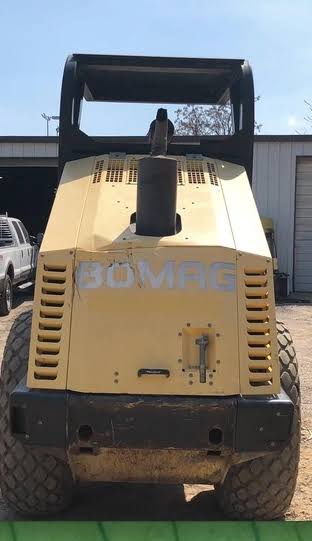

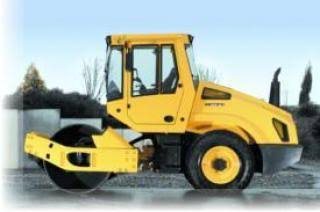

BOMAG BW 177 D-3 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.ie

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,939 lb
Max Speed6.3 mph
Fuel Capacity33.1 gal
Operating Width72 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB4.5-80C
Power Measured @2,200 rpm
Gross Power80.5 hp
Net Power77.8 hp
Number of Cylinders4
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab113 in
Wheelbase8 in
Overall Length15 in
Overall Width66 in
Drum Diameter - Front49 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24-AWT 6PR

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High30,349 lb
Vibration Frequency 240 vpm
Static Linear Load27 lb-ft
Vibration Frequency1,800 – 2,280 vpm
Centrifugal Force - Low26,977 lb
Nominal Amplitude - Low0 in
Frequency1,800 – 2,280 vpm
