BOMAG

BW 177 D-50

Smooth Drum Roller

Operating Weight
15,355 lb
Max Speed
6.8 mph
Gross Power
74.0 hp
All smooth drum rollers

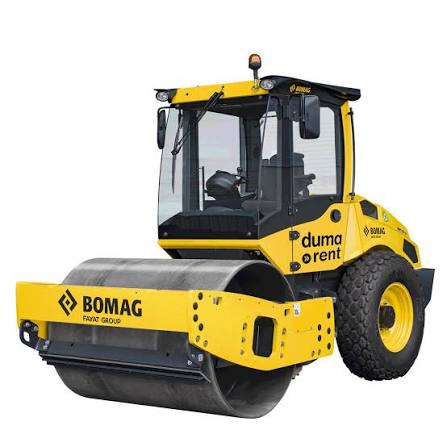

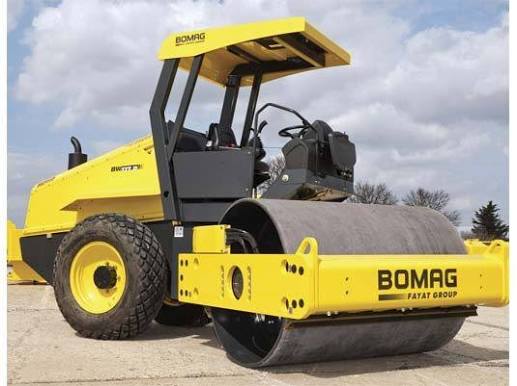

BOMAG BW 177 D-50 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: cbl.co.uk

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight15,355 lb
Max Speed6.8 mph
Fuel Capacity39.5 gal
Operating Width72 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelB3.3T
Power Measured @2,600 rpm
Gross Power74.0 hp
Number of Cylinders4
AspirationTier 4i
Engine MakeCummins
MakeCummins
FuelDiesel
Cooling methodWater

Weights

Weights specifications
Loaded Weight9,040 lb

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab113 in
Wheelbase98 in
Overall Length193 in
Overall Width67 in
Turning Radius - Inside123 in
Operating Width72 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeSAHR

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24/6PR

Drum

Drum specifications
Drum Diameter48 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High27,000 lb
Vibration Frequency 240 vpm
Static Linear Load11 lb-ft

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle12 °
SystemOscillatory Articulation
Steering Angle35 °
