BOMAG

BW 177 DH-3

Smooth Drum Roller

Operating Weight
16,226 lb
Max Speed
6.9 mph
Drum Width
66 in
Gross Power
110.0 hp
All smooth drum rollers

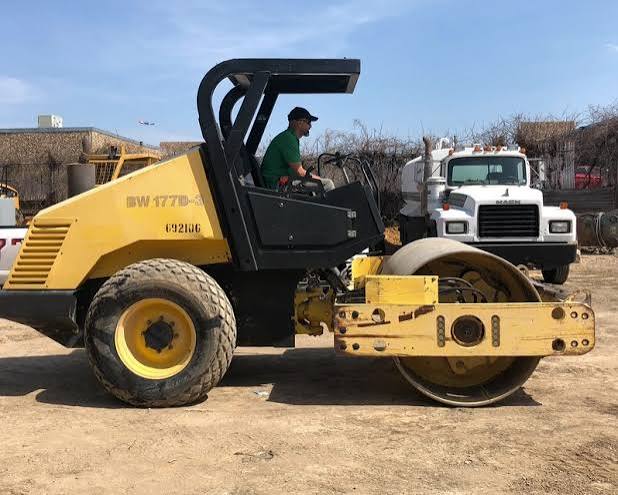

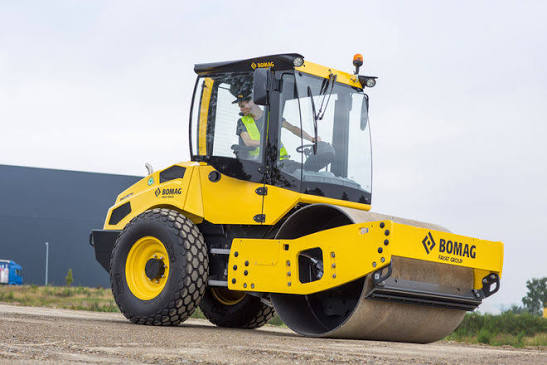

BOMAG BW 177 DH-3 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,226 lb
Max Speed6.9 mph
Fuel Capacity33.1 gal
Operating Width72 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelQSB4.5-110
Power Measured @2,200 rpm
Gross Power110.0 hp
Net Power107.3 hp
Number of Cylinders4
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab113 in
Wheelbase8 in
Overall Length15 in
Overall Width66 in
Drum Diameter - Front49 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24-AWT 6PR

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High30,349 lb
Vibration Frequency 240 vpm
Static Linear Load28 lb-ft
Vibration Frequency1,800 – 2,280 vpm
Centrifugal Force - Low26,977 lb
Nominal Amplitude - Low0 in
Frequency1,800 – 2,280 vpm
