BOMAG

BW 177 DH-5

Smooth Drum Roller

Operating Weight
14,551 lb
Max Speed
10.0 mph
Drum Width
66 in
Gross Power
74.3 hp
All smooth drum rollers

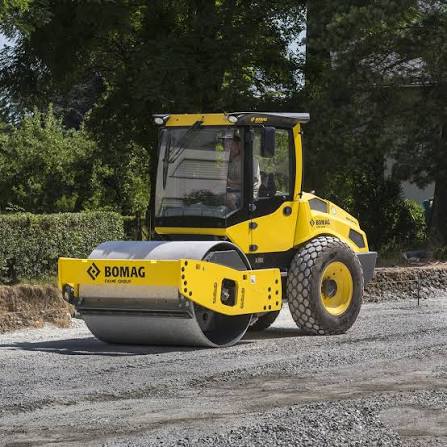

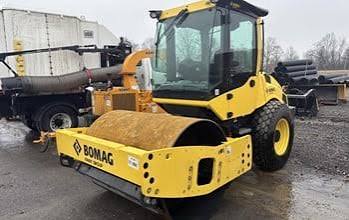

BOMAG BW 177 DH-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: bomag.com

Specifications

42 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,551 lb
Max Speed10.0 mph
Fuel Capacity29.1 gal
Operating Width72 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelV3307 CR-T
Power Measured @2,400 rpm
Gross Power74.3 hp
Number of Cylinders4
AspirationTier 4
Engine MakeKubota
MakeDeutz
FuelDiesel
Cooling methodWater
Emissions levelStage 4

Weights

Weights specifications
Grossweight18,078 lb
Loaded Weight8,929 lb

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab110 in
Wheelbase93 in
Overall Length172 in
Overall Width67 in
Turning Radius - Inside117 in
Operating Width67 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

Tires & Wheels

Tires & Wheels specifications
Tires14.9-24/8PR

General Specifications

General Specifications specifications
Engine typeKubota V3307 CR-T — Starting 2024 Model Year
DRUM WIDTH IN. (CM)66.5 (168.9) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)117 (297.5) — Starting 2024 Model Year
WIDTH IN. (CM)71.7 (182) — Starting 2024 Model Year
FREQUENCY HZ29/32 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width66 in
Drum Diameter48 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High16,636 lb
Vibration Frequency 232 vpm
Static Linear Load11 lb-ft
Vibration Frequency31 – 38 vpm

Steering System

Steering System specifications
Steering MethodHydrostatic
SystemOscillatory Articulation
