BOMAG

BW 190 AD-4 AM

Smooth Drum Roller

Operating Weight
26,896 lb
Gross Power
134.0 hp
All smooth drum rollers

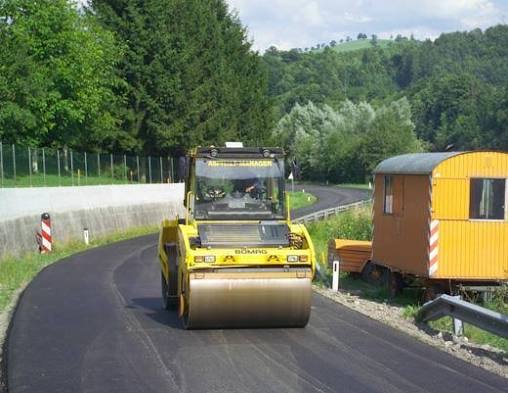

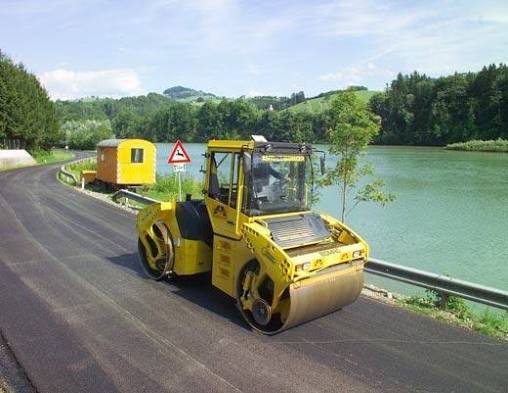

BOMAG BW 190 AD-4 AM Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,896 lb
Fuel Capacity52.9 gal
Engine Oil Capacity2.6 gal
Water Spray System Fluid Capacity264.2 gal

Engine

Engine specifications
Engine ModelTCD 2012 L04
Power Measured @2,300 rpm
Gross Power134.0 hp
Number of Cylinders4
Engine MakeDeutz
MakeDeutz

Weights

Weights specifications
Axle load front CECE13,812 lb

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab119 in
Wheelbase130 in
Overall Length178 in
Overall Width85 in

General Specifications

General Specifications specifications
Engine typeDeutz — Starting 2016 Model Year
DRUM WIDTH IN. (CM)78.7 (200) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)166.9 (424) — Starting 2016 Model Year
WIDTH IN. (CM)85.0 (216) — Starting 2016 Model Year
FREQUENCY HZF: 40-50 R: 46-57 — Starting 2016 Model Year

Drum

Drum specifications
Drum Diameter48 in
Nominal Amplitude - High2 in
Centrifugal Force - High37,543 lb
Centrifugal Force - Low8,447,196 lb
Nominal Amplitude - Low135 in
Nominal Amplitude - Med0 in
