BOMAG

BW 190 AD-4 HF

Smooth Drum Roller

Operating Weight
26,015 lb
Max Speed
7.1 mph
Gross Power
134.0 hp
All smooth drum rollers

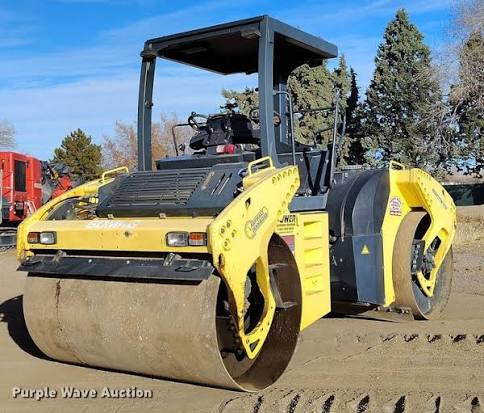

BOMAG BW 190 AD-4 HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: heavyequipmentguide.ca

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,015 lb
Max Speed7.1 mph
Fuel Capacity52.9 gal
Operating Width85 in
Operating Voltage12 V
Engine Oil Capacity2.6 gal

Engine

Engine specifications
Engine ModelTCD 2012 L04
Power Measured @2,300 rpm
Gross Power134.0 hp
Number of Cylinders4
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance14 in
Height - Top of Cab119 in
Wheelbase130 in
Overall Length178 in
Overall Width85 in
Turning Radius - Inside167 in
Drum Diameter - Front49 in
Drum Diameter - Rear49 in

Drum

Drum specifications
Drum Diameter48 in
Vibration Frequency 148 vpm
Vibration Frequency 260 vpm
Static Linear Load13 lb-ft
Vibration Frequency60 – 48 vpm
Nominal Amplitude - Med0 in
