BOMAG

BW 190 AD-5 HF

Smooth Drum Roller

Operating Weight
26,125 lb
Drum Width
78 in
Gross Power
114.0 hp
All smooth drum rollers

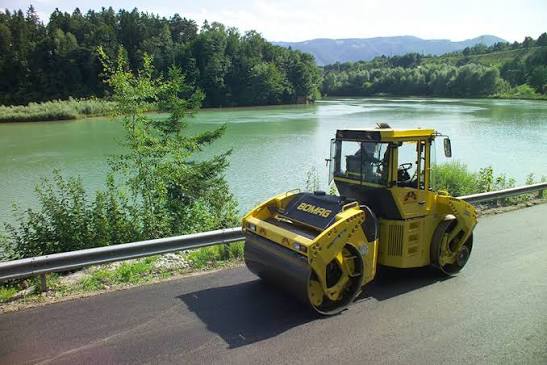

BOMAG BW 190 AD-5 HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: smsequipment.com

Specifications

37 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,125 lb
Fuel Capacity38.4 gal
Operating Width85 in
Operating Voltage12 V
Water Spray Tank Fluid Capacity198.2 gal

Engine

Engine specifications
Engine ModelV3800 CR-TI
Power Measured @2,600 rpm
Gross Power114.0 hp
Number of Cylinders4
Engine MakeKubota
MakeKubota
Cooling methodWater

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab121 in
Wheelbase143 in
Overall Length191 in
Overall Width85 in
Turning Radius - Inside187 in
Drum Diameter - Front49 in
Drum Diameter - Rear49 in
Track radius inner187 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti Disc

General Specifications

General Specifications specifications
Engine typeKubota — Starting 2019 Model Year
DRUM WIDTH IN. (CM)78.3 (199) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)186.8 (474.5) — Starting 2019 Model Year
WIDTH IN. (CM)95.1 (214.6) — Starting 2019 Model Year
FREQUENCY HZ50/70 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width78 in
Vibration Frequency 150 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High39,791 lb
Vibration Frequency 270 vpm
Vibration Frequency50 – 70 vpm
Centrifugal Force - Low27,876 lb
Nominal Amplitude - Low0 in

Steering System

Steering System specifications
SystemOscilatory Articulating
