BOMAG

BW 191 AD-5 HF

Smooth Drum Roller

Operating Weight
29,763 lb
Max Speed
7.5 mph
Drum Width
79 in
Gross Power
140.9 hp
All smooth drum rollers

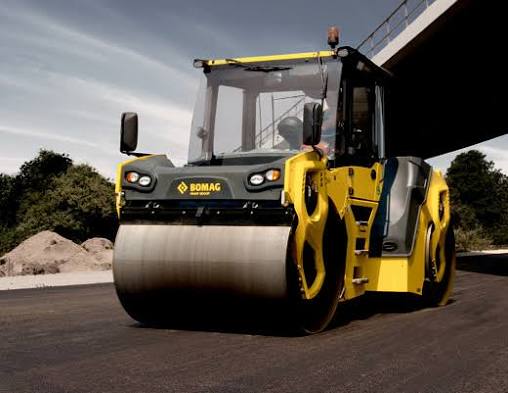

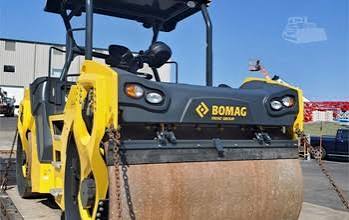

BOMAG BW 191 AD-5 HF Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,763 lb
Max Speed7.5 mph
Fuel Capacity43.6 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity256.2 gal

Engine

Engine specifications
Engine ModelTCD 4.1 L04
Power Measured @2,300 rpm
Gross Power140.9 hp
Number of Cylinders4
Engine MakeDeutz
Cooling methodWater

Weights

Weights specifications
Grossweight32,188 lb
Front axle weight14,661 lb
Rear axle weight15,102 lb
Static linear load, front16 lb-ft
Static linear load, rear16 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab122 in
Wheelbase154 in
Overall Length209 in
Overall Width86 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

General Specifications

General Specifications specifications
Engine typeDeutz — Starting 2019 Model Year
DRUM WIDTH IN. (CM)78.7 (200) — Starting 2019 Model Year
INSIDE TURN RADIUS IN. (CM)192.1 (490) — Starting 2019 Model Year
WIDTH IN. (CM)85.7 (217.8) — Starting 2019 Model Year
FREQUENCY HZ50/70 — Starting 2019 Model Year

Drum

Drum specifications
Drum Width79 in
Drum Diameter55 in
Vibration Frequency 140 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High21,132 lb
Vibration Frequency 250 vpm

Steering System

Steering System specifications
SystemOscillatoty Articulation
