BOMAG

BW 206 ADO-5

Smooth Drum Roller

Operating Weight
29,542 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
140.9 hp
All smooth drum rollers

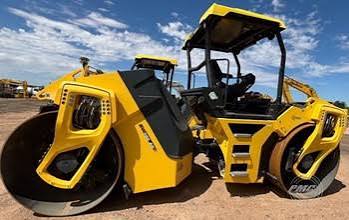

BOMAG BW 206 ADO-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: machinerytrader.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight29,542 lb
Max Speed7.5 mph
Fuel Capacity43.6 gal
Operating Voltage12 V
Hydraulic System Fluid Capacity256.2 gal

Engine

Engine specifications
Engine ModelTCD 4.1 L04
Power Measured @2,300 rpm
Gross Power140.9 hp
Number of Cylinders4
Engine MakeDeutz
Cooling methodWater

Weights

Weights specifications
Grossweight34,613 lb
Front axle weight15,332 lb
Rear axle weight14,220 lb
Static linear load, front15 lb-ft
Static linear load, rear14 lb-ft

Dimensions

Dimensions specifications
Ground Clearance10 in
Height - Top of Cab128 in
Wheelbase154 in
Overall Length209 in
Overall Width86 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeMulti disc

General Specifications

General Specifications specifications
Engine typeDeutz — Starting 2020 Model Year
DRUM WIDTH IN. (CM)84.1 (213.5) — Starting 2020 Model Year
INSIDE TURN RADIUS IN. (CM)201.5 (511.8) — Starting 2020 Model Year
WIDTH IN. (CM)91.1 (231.3) — Starting 2020 Model Year
FREQUENCY HZ40/50 — Starting 2020 Model Year

Drum

Drum specifications
Drum Width84 in
Drum Diameter55 in
Vibration Frequency 140 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High21,132 lb
Vibration Frequency 250 vpm

Steering System

Steering System specifications
SystemOscillatoty Articulation
