BOMAG

BW 211 D-3

Smooth Drum Roller

Operating Weight
22,928 lb
Max Speed
8.4 mph
Drum Width
84 in
Gross Power
131.5 hp
All smooth drum rollers

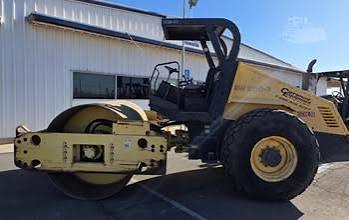

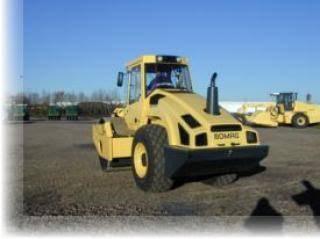

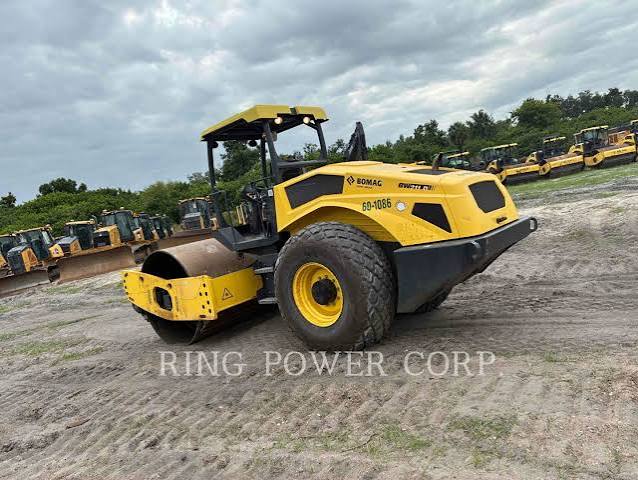

BOMAG BW 211 D-3 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight22,928 lb
Max Speed8.4 mph
Fuel Capacity66.1 gal
Operating Width89 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF4M2012C
Power Measured @2,300 rpm
Gross Power131.5 hp
Number of Cylinders4
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length19 in
Overall Width89 in
Drum Diameter - Front60 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1/18-26/8PR

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High53,055 lb
Vibration Frequency 236 vpm
Static Linear Load34 lb-ft
Vibration Frequency1,800 – 2,160 vpm
Centrifugal Force - Low38,218 lb
Nominal Amplitude - Low0 in
Frequency1,800 – 2,160 vpm
