BOMAG

BW 211 DH-5

Smooth Drum Roller

Operating Weight
24,008 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
127.4 hp
All smooth drum rollers

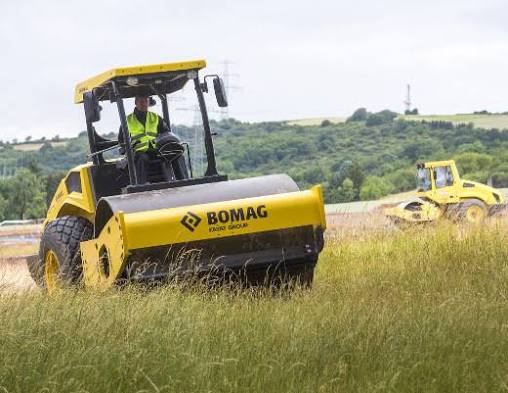

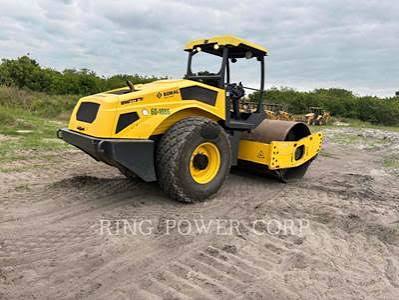

BOMAG BW 211 DH-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: constructionequipmentguide.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight24,008 lb
Max Speed7.5 mph
Fuel Capacity66.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelTCD 3.6 L4
Power Measured @2,000 rpm
Gross Power127.4 hp
Number of Cylinders4
AspirationTier 4
Engine MakeDeutz
FuelDiesel
Cooling methodLiquid
Emissions levelStage 4

Weights

Weights specifications
Grossweight30,314 lb
Loaded Weight12,963 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab119 in
Wheelbase89 in
Overall Length231 in
Overall Width90 in
Operating Width84 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26 12PR

General Specifications

General Specifications specifications
Engine typeDeutz TCD 3.6 L4 — Starting 2024 Model Year
DRUM WIDTH IN. (CM)83.9 (213.1) — Starting 2024 Model Year
INSIDE TURN RADIUS IN. (CM)144.9 (368) — Starting 2024 Model Year
WIDTH IN. (CM)89.4 (227) — Starting 2024 Model Year
FREQUENCY HZ30/34 — Starting 2024 Model Year

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High36,419 lb
Vibration Frequency 234 vpm
Static Linear Load13 lb-ft

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle12 °
SystemOscillatory Articulation
Steering Angle35 °
