BOMAG

BW 213 D-2A

Smooth Drum Roller

Operating Weight
25,593 lb
Max Speed
6.3 mph
Gross Power
114.0 hp
All smooth drum rollers

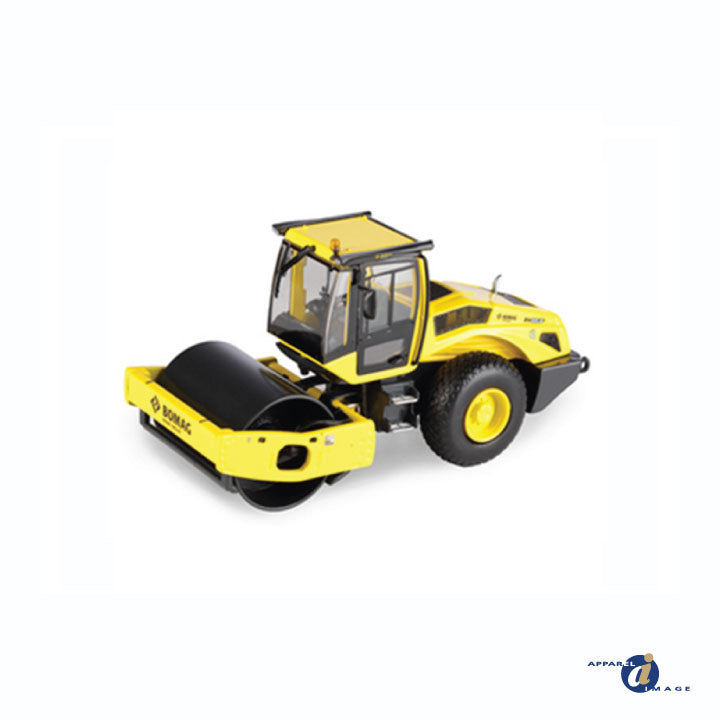

BOMAG BW 213 D-2A Smooth Drum Roller
1 / 5
Image 1 of 5
Image: bomaggear.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,593 lb
Max Speed6.3 mph
Fuel Capacity51.6 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF4L913
Power Measured @2,500 rpm
Gross Power114.0 hp
Net Power104.6 hp
Number of Cylinders4
Aspirationnatural

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab127 in
Wheelbase10 in
Overall Length19 in
Overall Width83 in
Drum Diameter - Front60 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1/18-268PR

Drum

Drum specifications
Drum Diameter59 in
Vibration Frequency 131 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High43,163 lb
Vibration Frequency 240 vpm
Static Linear Load14 lb-ft
Centrifugal Force - Low55,078 lb
Nominal Amplitude - Low0 in
