BOMAG

BW 213 DH-3

Smooth Drum Roller

Operating Weight
27,403 lb
Max Speed
7.5 mph
Drum Width
84 in
Gross Power
155.6 hp
All smooth drum rollers

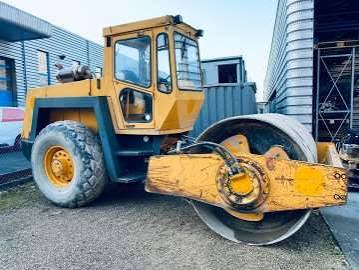

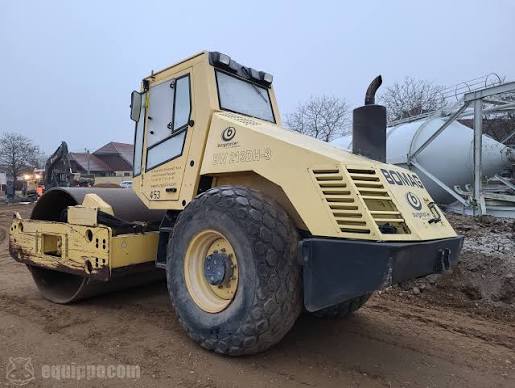

BOMAG BW 213 DH-3 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,403 lb
Max Speed7.5 mph
Fuel Capacity89.9 gal
Operating Width89 in
Operating Voltage12 V

Engine

Engine specifications
Engine Model6B5.9 QSB-155C
Power Measured @2,200 rpm
Gross Power155.6 hp
MakeCummins

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length19 in
Overall Width84 in
Drum Diameter - Front60 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1/18-26/8PR

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High61,823 lb
Vibration Frequency 236 vpm
Static Linear Load39 lb-ft
Vibration Frequency1,800 – 2,160 vpm
Centrifugal Force - Low44,512 lb
Nominal Amplitude - Low0 in
Frequency1,800 – 2,160 vpm
