BOMAG

BW 213 DH-4

Smooth Drum Roller

Operating Weight
27,498 lb
Max Speed
8.7 mph
Drum Width
84 in
Gross Power
155.0 hp
All smooth drum rollers

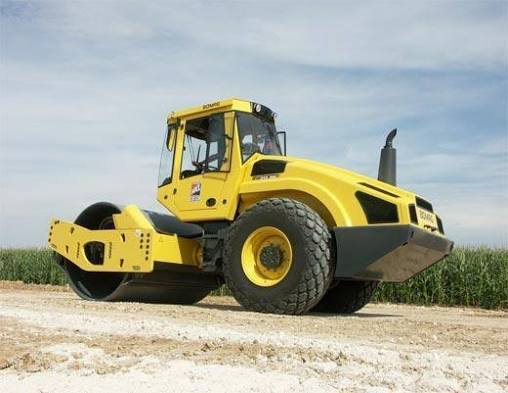

BOMAG BW 213 DH-4 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,498 lb
Max Speed8.7 mph
Fuel Capacity89.9 gal
Operating Width89 in
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF4M1013EC
Power Measured @2,200 rpm
Gross Power155.0 hp
Net Power153.0 hp
Number of Cylinders4
MakeDeutz

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Wheelbase10 in
Overall Length19 in
Turning Radius - Inside153 in
Drum Diameter - Front60 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26/12PR

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Vibration Frequency 236 vpm
Static Linear Load16 lb-ft
Vibration Frequency1,800 – 2,160 vpm
Nominal Amplitude - Med0 in
Centrifugal Force - MEd50,582 lb
