BOMAG

BW 213 DH-4 BVC

Smooth Drum Roller

Operating Weight
32,849 lb
Drum Width
84 in
Gross Power
160.0 hp
All smooth drum rollers

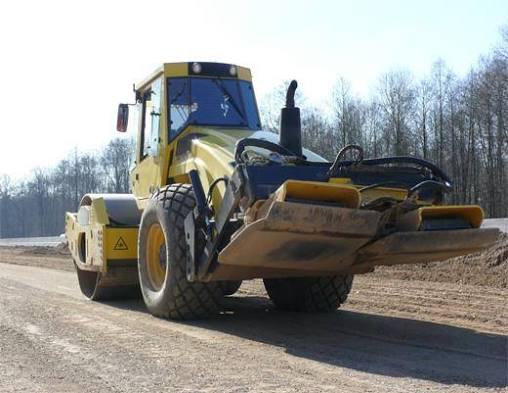

BOMAG BW 213 DH-4 BVC Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight32,849 lb
Fuel Capacity89.9 gal
Tire Size23.1/18-26/12PR

Engine

Engine specifications
Engine ModelTCD 2013 L04
Power Measured @2,200 rpm
Gross Power160.0 hp
Number of Cylinders4
Engine MakeDeutz
MakeDeutz

Weights

Weights specifications
Axle load front CECE20,723 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab118 in
Wheelbase117 in
Overall Length229 in
Overall Width90 in
Turning Radius - Inside138 in
Track radius inner138 in

General Specifications

General Specifications specifications
Engine typeDeutz — Starting 2016 Model Year
DRUM WIDTH IN. (CM)83.9 (213.0) — Starting 2016 Model Year
INSIDE TURN RADIUS IN. (CM)137.6 (349.4) — Starting 2016 Model Year
WIDTH IN. (CM)89.4 (227.0) — Starting 2016 Model Year
FREQUENCY HZ28 — Starting 2016 Model Year

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Nominal Amplitude - High0 in
Centrifugal Force - High82,055 lb

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle12 °
SystemOscillating or Articulation
