BOMAG

BW 213D-5

Smooth Drum Roller

Operating Weight
27,580 lb
Max Speed
6.8 mph
Drum Width
84 in
Gross Power
128.0 hp
All smooth drum rollers

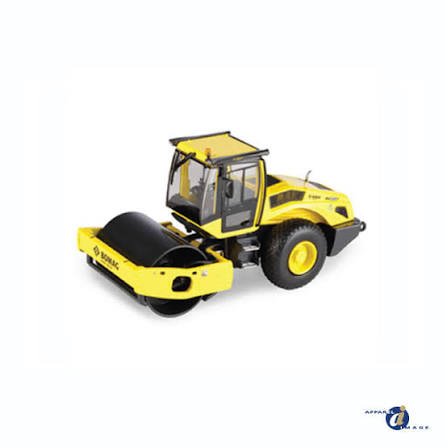

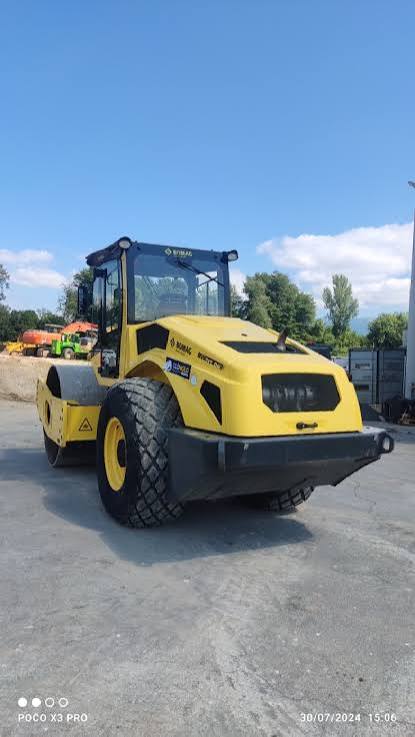

BOMAG BW 213D-5 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight27,580 lb
Max Speed6.8 mph
Fuel Capacity66.0 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelTCD 3.6 L4
Power Measured @2,000 rpm
Gross Power128.0 hp
Number of Cylinders4
AspirationTier 4
Engine MakeDeutz
FuelDiesel
Cooling methodLiquid
Emissions levelStage 4

Weights

Weights specifications
Grossweight32,629 lb
Loaded Weight16,535 lb

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab119 in
Wheelbase89 in
Overall Length231 in
Overall Width84 in

Brakes & Steering

Brakes & Steering specifications
Service brakeHydrostatic
Parking brakeHydromec

Tires & Wheels

Tires & Wheels specifications
Tires23.1-26 12PR

Drum

Drum specifications
Drum Width84 in
Drum Diameter59 in
Vibration Frequency 130 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High44,063 lb
Vibration Frequency 234 vpm
Static Linear Load16 lb-ft

Steering System

Steering System specifications
Steering MethodHydrostatic
Oscillating angle12 °
SystemOscillatory Articulation
Steering Angle35 °
