BOMAG

BW 219 D-2

Smooth Drum Roller

Operating Weight
42,166 lb
Max Speed
6.9 mph
Gross Power
169.6 hp
All smooth drum rollers

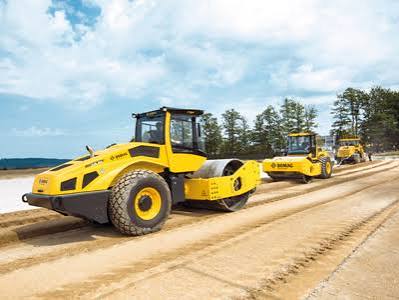

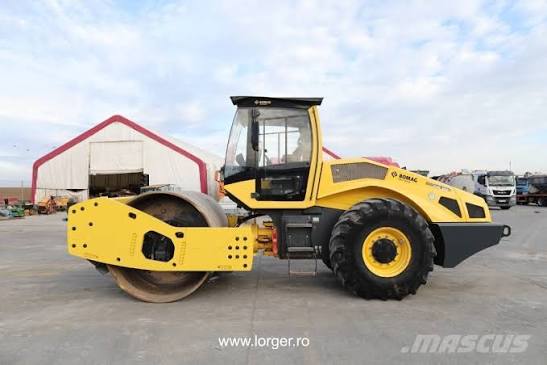

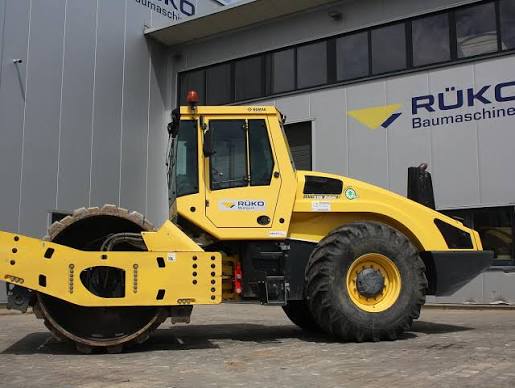

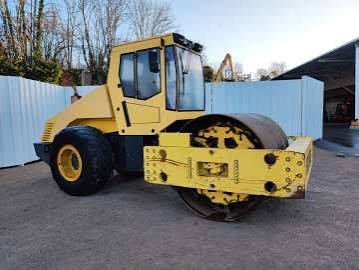

BOMAG BW 219 D-2 Smooth Drum Roller
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight42,166 lb
Max Speed6.9 mph
Fuel Capacity87.2 gal
Operating Voltage12 V

Engine

Engine specifications
Engine ModelBF6L913
Power Measured @2,500 rpm
Gross Power169.6 hp
Net Power160.5 hp
Number of Cylinders6
Aspirationnatural

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab126 in
Wheelbase10 in
Overall Length20 in
Overall Width84 in
Drum Diameter - Front64 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1/18-26/8PR

Drum

Drum specifications
Drum Diameter63 in
Vibration Frequency 129 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High54,629 lb
Vibration Frequency 235 vpm
Static Linear Load26 lb-ft
Centrifugal Force - Low68,522 lb
Nominal Amplitude - Low0 in
