CG233HF
Smooth Drum Roller
19 specifications
1 / 5

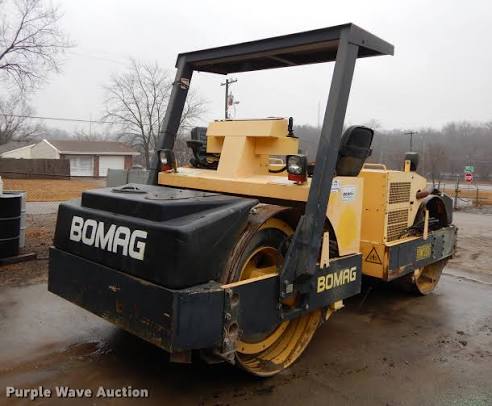

Image 1 of 5
Specifications
27 data points
Operating Specifications
| Operating Weight | 20,600 lb |
|---|---|
| Max Speed | 10.1 mph |
| Fuel Capacity | 50.0 gal |
| Operating Width | 81 in |
| Operating Voltage | 12 V |
| Engine Oil Capacity | 22.1 gal |
| Cooling System Fluid Capacity | 4.8 gal |
Engine
| Engine Model | 4B3.9 QSB-C130 |
|---|---|
| Gross Power | 130.1 hp |
| Make | Cummins |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 106 in |
| Wheelbase | 10 in |
| Overall Length | 17 in |
| Overall Width | 78 in |
| Turning Radius - Inside | 156 in |
Drum
| Drum Width | 66 in |
|---|---|
| Drum Diameter | 48 in |
| Vibration Frequency 1 | 57 vpm |
| Nominal Amplitude - High | 0 in |
| Centrifugal Force - High | 27,562 lb |
| Vibration Frequency 2 | 63 vpm |
| Static Linear Load | 84 lb-ft |
| Vibration Frequency | — |
| Centrifugal Force - Low | 32,912 lb |
| Nominal Amplitude - Low | 0 in |
| Frequency | 3,400 – 3,800 vpm |
